Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: BT24A15
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
LINK-PP P/N: |
BT24A15 |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
LINK-PP P/N: |
BT24A15 |
Familiy: |
10/100 Magnetics |
Mounting: |
SMT |
Samples: |
Available |
Number Of Ports: |
Single |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

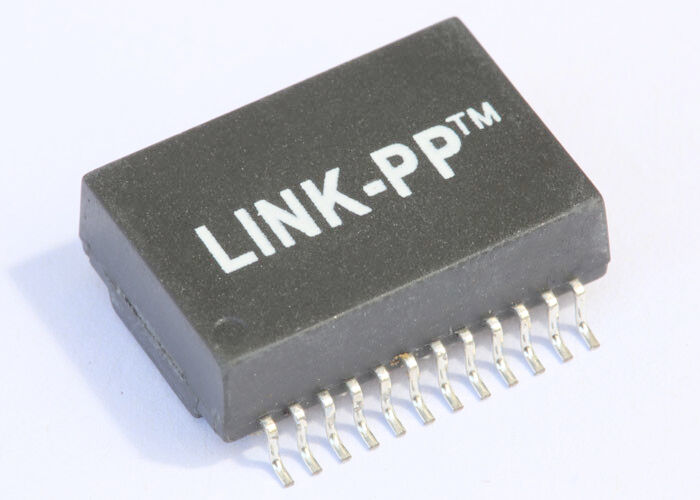

| Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number | - |
| Part Number | BT24A15 |
| Speed | 10/100 BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMD |
| Temperature | 0 TO 70 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Package Height (Inches) | - |
| Package Height (mm) |
2.29 |
| Package Length (Inches) | - |
| Package Length (mm) | 12.60 |
| Package Width (Inches) | - |
| Package Width (mm) | 9.54 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Payment
1. We accept PayPal, Western Union, T.T in advance, Escrow and so on.
2. If you prefer other pay ways , pls contact us.
Shipping
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
Refund & Replacement
1.We provide 45 days quality guarantee period usually .
2.If the Electronics component you purchase from our copmany are not of perfected quality, and don't work electronically to manufacturers specifications, please return them to us for replacement or refund .
3.If the Electronics component is defective, pls notify us within 3 days of delivery.
4.Any Electronics component must be returned in their original condition to qualify for a refund or replacement.
5.The buyer is responsible for all the shipping cost incurred.
