Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HN4064CG HN4065CG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
HN4064CG |
PN.2: |
HN4065CG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN.1: |
HN4064CG |
PN.2: |
HN4065CG |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

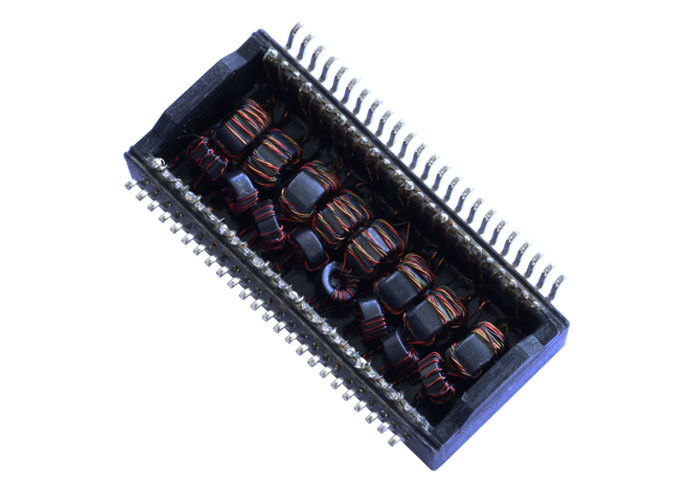

| 10/100/1000 Base-T Magnetics Modules Lan Transformer HN4064CG HN4065CG | |
| Part Number | HN4064CG HN4065CG |
| Speed | 10/100/1000BASE-T |
| Number of Ports | SINGLE/DUAL/QUAD |
| Application - LAN | ETHERNET (NON PoE) |
| Package | SMT |
| Temperature | 0 TO 70/-40 TO +85 |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | C,T,S |
| Configuration TX | C,T,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4/6/8/12 |
| Package Height (Inches) | 0.236 |
| Package Height (mm) | 5.97 |
| Package Length (Inches) | 0.50 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.380 |
| Package Width (mm) | 9.53 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Shipping
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
Refund & Replacement
1. We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).
2. If the items you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items are defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.
Successful customer:
Intel use LINK-PP gigabit RJ45 in their MinnowBoardMAX
Renesas use LINK-PP Gigabit RJ45 in their GR-ROSE Board
TI use LINK-PP RJ45 in their BeagleBone Board
FAQ
Q: How long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days
USB Series: 7~15 days
Connector: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
