Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HN22136G HN22137G
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
HN22136G HN22137G |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN.1: |
HN22136G HN22137G |
Turns Ratio: |
1 : 1 |
Mounting Type: |
THT |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

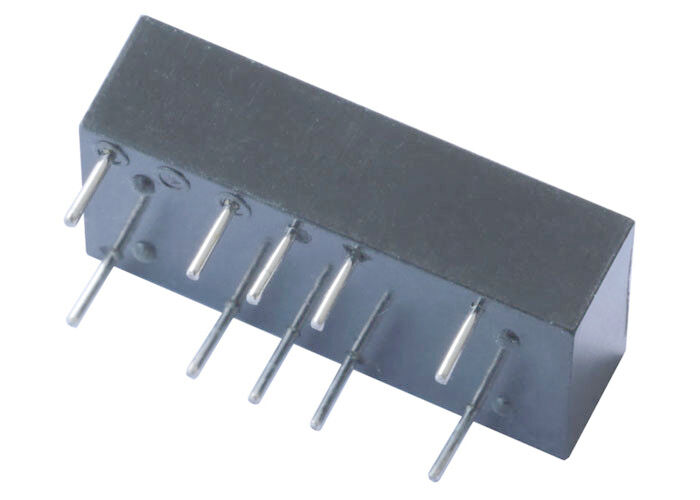

| ADSL LINE Telecom Transformer Modules HN22136G / HN22137G | |
| Mingtek Part Number | HN22136G / HN22137G |
| Speed | - |
| Number of Ports | Single Port |
| Application - LAN | ETHERNET (NoN PoE ) |
| Package | DIP |
| Temperature | 0 TO 70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX/TX | C,T,S |
| Pin Number | 10 |
| Construction | OPEN FRAME |
| Cores Per Port | 1 |
| Package Height (mm) | 12.9 |
| Package Length (mm) | 13.97 |
| Package Width (mm) | 13.89 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
• Delivery Time:2-3 Weeks After Orders
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
Discrete LAN Magnetics
Discrete LAN Magnetics product line consists of a broad range of magnetic-based solutions designed for use in high-speed computer and networking applications. Bel’s portfolio of single, dual and quad SMT modules are compatible with IEEE 802.3 Ethernet standards for 10/100, 1G, 2.5G, 5G and 10GBaseT transmission. Product development will continue to focus on devices compatible with the bandwidth required to support the convergence of voice/video/ data networking, high-performance computing, and storage traffic within the enterprise space and data centers.
