Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 16ST1086
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
1. Coil Number: Auto transformer
2. Isolation Voltage:1500Vrms
3.Type:SMT
4. Coil Structure: Toroidal

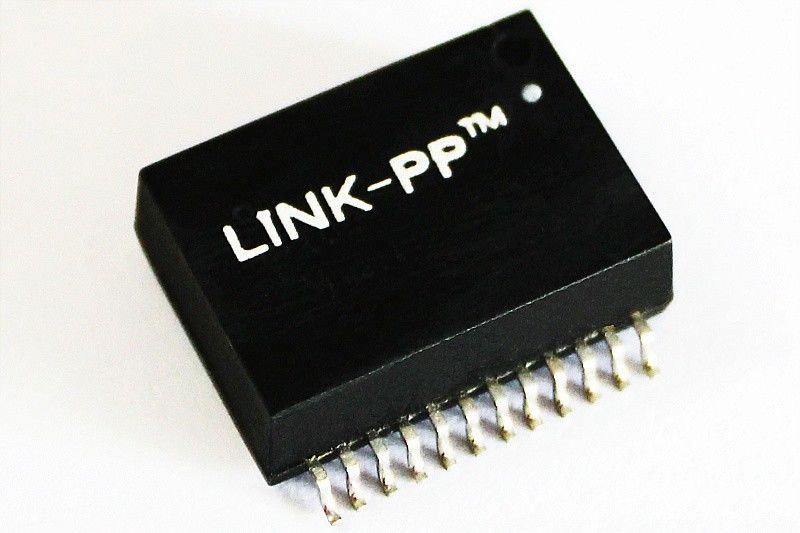

11F(B)-11 10/100 base-t single Ports Ethernet Pulse Transformer For Hub , Pc Card
Description:
10/100 Base-T single Port Transformer Modules
|
Application |
LAN ETHERNET(PoE&NON PoE) |
|
AutomDX |
YES |
|
Comment |
RoHS Compliant LPXXXXNL |
|
Configuration RX |
T,C |
|
Configuration TX |
T,C |
|
Construction |
TRANSFER MOLD |
|
Cores Per Port |
4 |
|
Number of Ports |
QUAD |
|
PCB |
NO PCB |
|
Package |
SMT |
|
Package Height (Inches) |
0.225 or other |
|
Package Height (mm) |
5.715 or other |
|
Package Length (Inches) |
1.12 or other |
|
Package Length (mm) |
28.448 or other |
|
Package Width (Inches) |
0.63 or other |
|
Package Width (mm) |
16.002 or other |
|
RoHS Compliant |
YES-RoHS-6 |
|
Speed |
10/100/1000BASE-TX |
|
Temperature |
0 TO 70/-40 To +85 |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
|
Main P/N |
LP1102NL, etc |
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
