Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TX1267NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
TX1267NL |
Speed: |
10/100 BASE-T |
Number Of Ports: |
Single Port |
Application: |
Lan Ethernet |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0℃ TO + 70℃ |
Construction: |
Open Frame |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
TX1267NL |
Speed: |
10/100 BASE-T |
Number Of Ports: |
Single Port |
Application: |
Lan Ethernet |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0℃ TO + 70℃ |
Construction: |
Open Frame |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
1.Single Port Lan Transformer
2.ColiStructure:Toroidal
3.100Base-t Transformer
4.SMD,16 pins

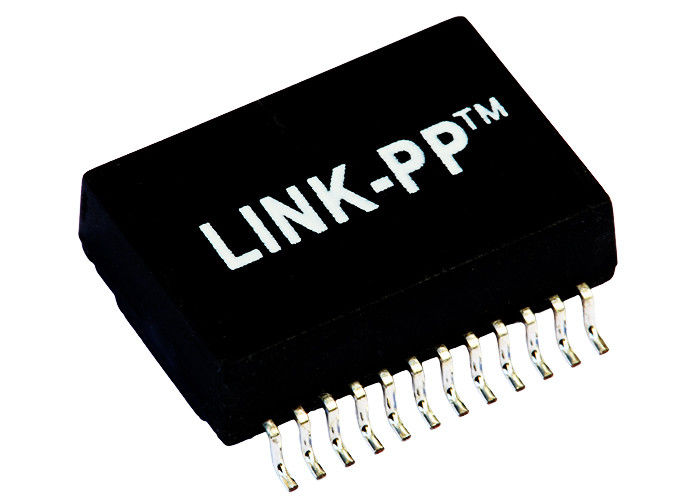

10 / 100 / 1000BASE-TX Single Port Lan Transformer With 24 Pins
Description:
Single Port Gigabit Ethernet Magnetics Transformers
| Application | LAN ETHERNET(PoE&NON PoE) |
| AutomDX | YES |
| Comment | RoHS Compliant LPXXXXNL |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Construction | TRANSFER MOLD |
| Cores Per Port | 4 |
| Number of Ports | Single |
| PCB | NO PCB |
| Package | SMT |
| Package Height (Inches) | 0.225 or other |
| Package Height (mm) | 5.715 or other |
| Package Length (Inches) | 1.12 or other |
| Package Length (mm) | 28.448 or other |
| Package Width (Inches) | 0.63 or other |
| Package Width (mm) | 16.002 or other |
| RoHS Compliant | YES-RoHS-6 |
| Speed | 10/100/1000BASE-TX |
| Temperature | 0 TO 70/-40 To +85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Main P/N | LP1102NL, etc |
Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE(Tyco) For 10 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI(Texas Instruments)
•Quality Guarantee:7 Years
