Dual Port 16 Pins Lan Transformer With 4 Port Ethernet Card 23F-02NL

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

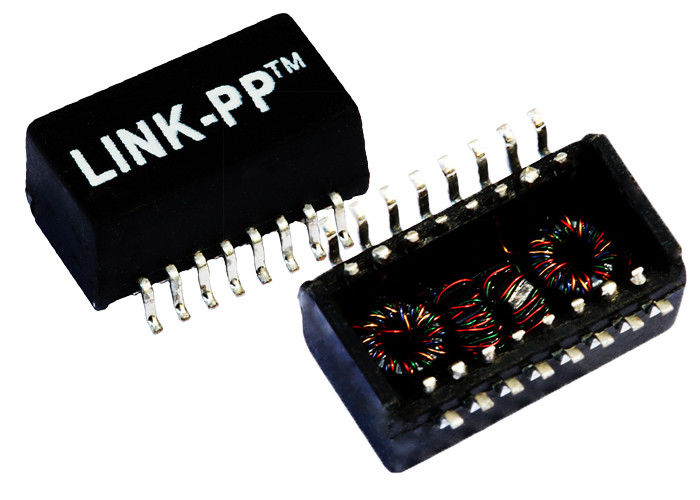

Dual Port 16 Pins Lan Transformer With 4 Port Ethernet Card 23F-02NL

China Dual Port 16 Pins Lan Transformer With 4 Port Ethernet Card 23F-02NL supplier

Large Image :  Dual Port 16 Pins Lan Transformer With 4 Port Ethernet Card 23F-02NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 23F-02NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 23F-02NL Speed: 10 BASE-T
Number Of Ports: SINGLE Application: Lan Ethernet(NoN PoE)
Package: SMD PIN Number: 16
Temperature: 0℃ TO +70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

Dual Port 48 Pins Lan Transformer With 4 Port Ethernet Card

Quick Details

1.Dual Port Lan Transformer

2.ColiStructure: Toroidal

3.100base-t transformer

4.SMD, 48 pins


10 / 100 / 1000BASE-TX Dual Port Lan Transformer With 48 Pins

Description:

Dual Port Gigabit ETHERNET MAGNETIC TRANSFORMERS

Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPXXXXNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP1102NL, etc


Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

Dual Port 48 Pins Lan Transformer With 4 Port Ethernet Card

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: Amanda.y@link-pp.com

Tel: +8618665915096

Send your inquiry directly to us (0 / 3000)
