Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG110-S050N2 / TG110-S050N2RL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
TG110-S050N2 / TG110-S050N2RL |
Family: |
10/100 Transformer |
Turns Ratio: |
1CT:1CT |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 9.3mm |
Height - Seated (Max): |
6.20 Mm |
Temperature Range: |
0 To +70 Degree/-40 To +85 Degree |
Professional Certificate: |
SGS/ISO9001:2008/UL/Supplier Assessment Certificate |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
TG110-S050N2 / TG110-S050N2RL |
Family: |
10/100 Transformer |
Turns Ratio: |
1CT:1CT |
Mounting: |
SMT |
Size / Dimension: |
12.7mm X 9.3mm |
Height - Seated (Max): |
6.20 Mm |
Temperature Range: |
0 To +70 Degree/-40 To +85 Degree |
Professional Certificate: |
SGS/ISO9001:2008/UL/Supplier Assessment Certificate |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| LINK-PP Part Number | LP1183NL |
| Item Part Number | TG110-S050N2RL / TG110-LC50N2 |
| Speed | 10/100 BASE-T |
| Number of Ports | SINGLE |
| Application | Lan Ethernet |
| Package | SMD |
| PIN number | 16 |
| Temperature | 0 TO + 70 |

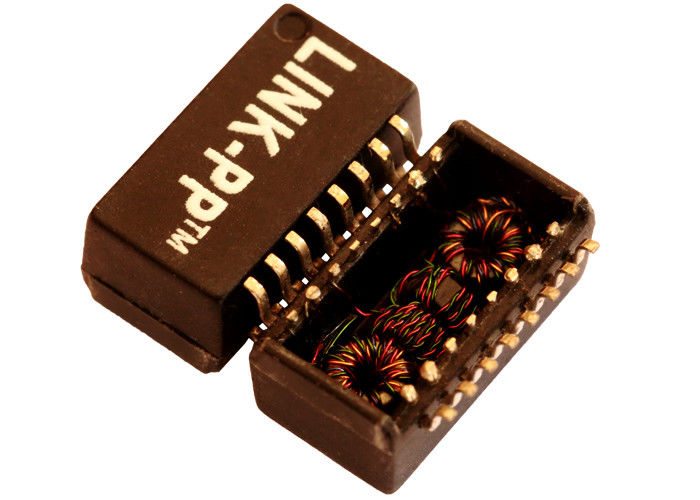

1.Single Port Lan Transformer
2.ColiStructure: Toroidal
3.100base-t transformer
4.SMD, 16 pins
Electrical Specifications @ 25°C
Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min
Applications:
Networking equipment
Hubs
Switches
Routers
PCs
Servers
Workstations
Motherboards
Equipment utilizing a network port
NICs
Servers
PCs
Consumer Devices
