One Port Lan Isolation Transformer Filter Magnetic Module With 16 Pins PA1279NL

China One Port Lan Isolation Transformer Filter Magnetic Module With 16 Pins PA1279NL supplier

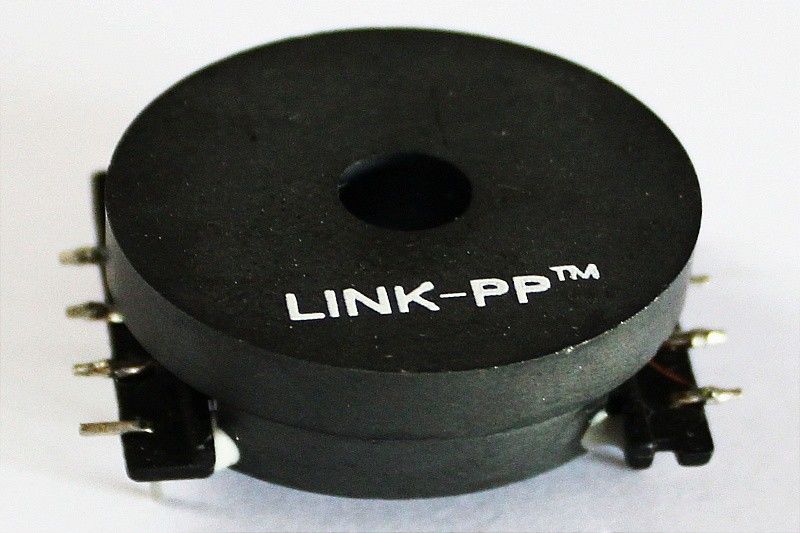

Large Image :  One Port Lan Isolation Transformer Filter Magnetic Module With 16 Pins PA1279NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: PA1279NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Part Number: PA1279NL Project Application: NETWORK INTERFACE CARD
Apllication: 10/100Base-T Original Munafactuer: LINK-PP
PIN Number: 16 Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

One Port Lan Isolation Transformer Filter Magnetic Module With 16 Pins PA1279NL

Competitor Cross Reference

Trader
Part Number

Manufacturer

Part Number

Manufacturer Description

PA1279NL

LPxxxNL

LINK-PP

PA1279NL , Lan Transformer 10/100Base-T Dual port Magnetics


Series Transformer Type Applications Turn Radio
Transformer Isolation and Data Interface 10/100 Base-T 1:1

Mounting Type Size / Dimension Height - Seated (Max) Unit Price
Surface Mount 5.715x28.448x16.002mm 5.715mm $0.39-0.69 For mass Production



Quick Details



1.Single Port Lan Transformer

2.ColiStructure: Toroidal

3.100base-t transformer

4.SMD, 16 pins


10 / 100 BASE-TX Single Port Lan Transformer With 16 Pins




Description:



Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS



Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPxxxNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports Single
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min





Applications:



Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:



16 years production experience,

2600 staff,

100% test

Flexible delivery time
