Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPXXXXXX
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Original: |
ST7033QNL |
Equivalent: |
LPxxxxxx |
Speed: |
10G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
0°C ~ 70°C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Original: |
ST7033QNL |
Equivalent: |
LPxxxxxx |
Speed: |
10G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
0°C ~ 70°C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |

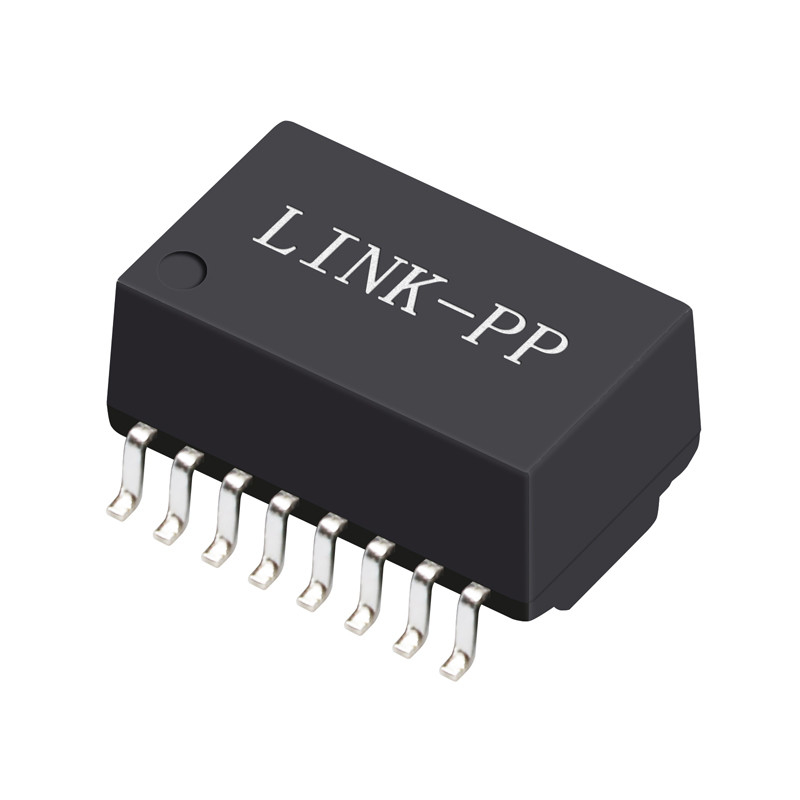

ST7033QNL 10G Base-T ETHERNET TRANSFORMER For Surgical Equipment (SMD ,16 PIN, Single Port ) |
|
LINK-PP Part Number | LPxxxxxx |
Other Part Number | ST7033QNL |
Speed | 10G BASE-T |
Number of Ports | SINGLE |
Application - LAN | ETHERNET (NON PoE) |
Package | SMT |
Temperature | 0 TO 70℃ |
AutomDX | YES |
Comment | SAME AS NL VERSION |
Configuration RX | T,C,S |
Configuration TX | T,C,S |
Construction | OPEN FRAME |
Cores Per Port | 3 |
Number of Ports | SINGLE |
Package Height (Inches/mm) | 0.225/5.715 |
Package Length (Inches/mm) | 0.455/11.557 |
Package Width (Inches/mm) | 0.375/9.525 |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
ST7033QNL SMD LAN Magnetic Transformer Features:
■ IEEE 802.3 Ethernet compatible
■ Designed for AMD IC manufacturers
■ Fully integrated for adapter, hub and motherboard applications
■ Extended temperature range: 0 °C to +70 °C
■ RoHS compliant*
ST7033QNL ETHERNET TRANSFORMER Electrical Specifications @ 25 °C:
You may be interesting in below considerate supports: | ||||
Datasheet | Request by email to | contact us | ||
Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
Company Name | ||||
Delivery Address | ||||
Telephone Number | ||||
Contact Person | ||||
UPS/DHL/Fedex/TNT A.C | (If available) | |||
Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
L/T(Weeks) | Stock | |||
Shipping Term | DAP/CIF/FCA/FOB | |||
Mass Production | U/P(USD) | Stock | ||
L/T(Weeks) | Stock | |||
Shipping Term | DAP/CIF/FCA/FOB | |||
Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
Reject Ratio | Zero Defective (100% Tested) | |||
Special Services | Accept customized service | Accept revised designing | ||
Now you can contact us instantly |
ST7033QNL 10G BASE-T 16 Pin Single Port SMD ETHERNET TRANSFORMER Electrical Schematic:
ST7033QNL SMD ETHERNET TRANSFORMER package:
