Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JT5-2270NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JT5-2270NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

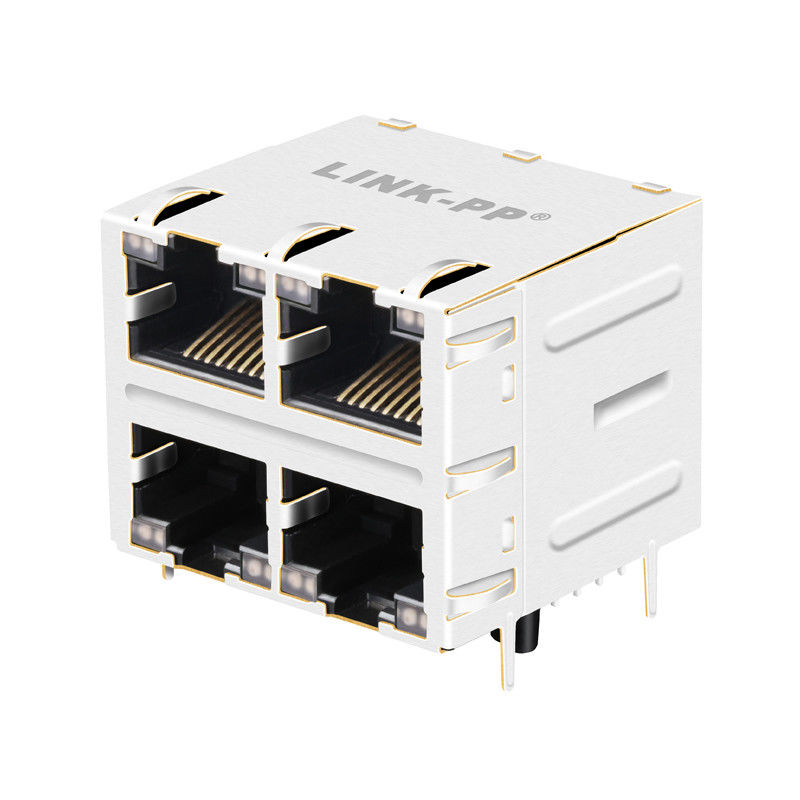

| LINK-PP Part Number | LPJxxxxxx |
| Part Number | JT5-2270NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| SPEED | 1000 BASE-T |
| POE RATING | NON-POE |
| LED Option | NO led |
| LED OPTION | LIGHT PIPES |
| Number of Ports | 2X2 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | 0°C ~70°C |
| CONTACT MATING AREA PLATING | Gold 50 U" |
| PACKAGE HEIGHT MM | 25.59 |
| PACKAGE LENGTH MM | 41.20 |
| PACKAGE WIDTH MM | 35.72 |
JT5-2270NL 2X2 Port RJ45 Connector Electrical Schematic:
JT5-2270NL RJ45 Jack Similar Part Number :
| JT5-2270NL | JT5-2470NL | JT5-2610CNL |
| JXD0-0012NL | JT4-1109HL | JT4-1120HL |
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 6000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
