Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JXD1-9008NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JXD1-9008NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

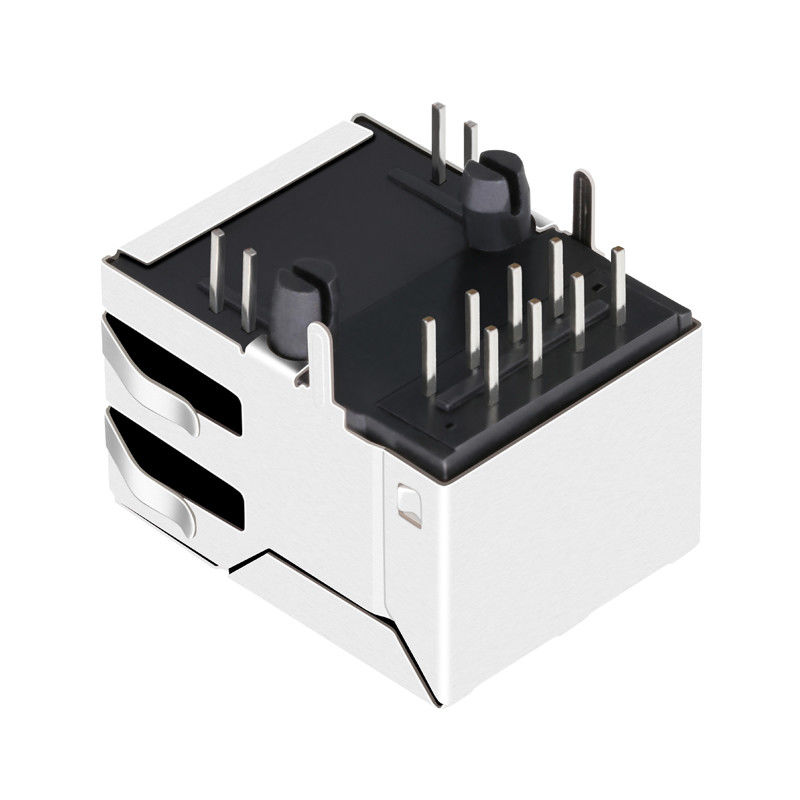

The JXD1-9008NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.
| LINK-PP Part Number | LPJxxxxxx |
| Part Number | JXD1-9008NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| SPEED | 100 BASE-T |
| POE RATING | NON-POE |
| LED Option | GREEN/YELLOW Led |
| Number of Ports | 1X1 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40°C ~85°C |
| CONTACT MATING AREA PLATING | Gold 30 U" |
| PACKAGE HEIGHT MM | 13.40 |
| PACKAGE LENGTH MM | 21.50 |
| PACKAGE WIDTH MM | 15.75 |
JXD1-9008NL Single Port Tab UP RJ45 Magjack Electrical Schematic:
| JXD1-9008NLT | JXD1-9015NLT | JXD2-0Z10NL |
| JXD2-0Z11NL | JXD2 0Z14NL | JXD1-9008NL |
JXD1-9008NL Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 9 days
- Testing & Packaging Time: 3 days
- Total Delivery Time: 15 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
