Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPXXXXXX
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Original: |
HX5G1010NL |
Equivalent: |
LPxxxxxx |
Speed: |
5G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
-40C TO +85C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Original: |
HX5G1010NL |
Equivalent: |
LPxxxxxx |
Speed: |
5G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
-40C TO +85C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
| LINK-PP Part Number | LPxxxxxx |
| Other Part Number | HX5G1010NL |
| Speed | 5G BASE-T |
| Number of Ports | Single |
| PIN number | 24 |
| Cores per Port | 8 |
| POE RATING | 4PAIR POE 60W |
| Package | PCMCIA |
| Temperature | -40C TO +85C |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| APPLICATION-LAN | ETHERNET TRANSFORMER |
| Package Height (Inches) | 2.080 |
| Package Length (Inches) | 16.510 |
| Package Width (Inches) | 9.650 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

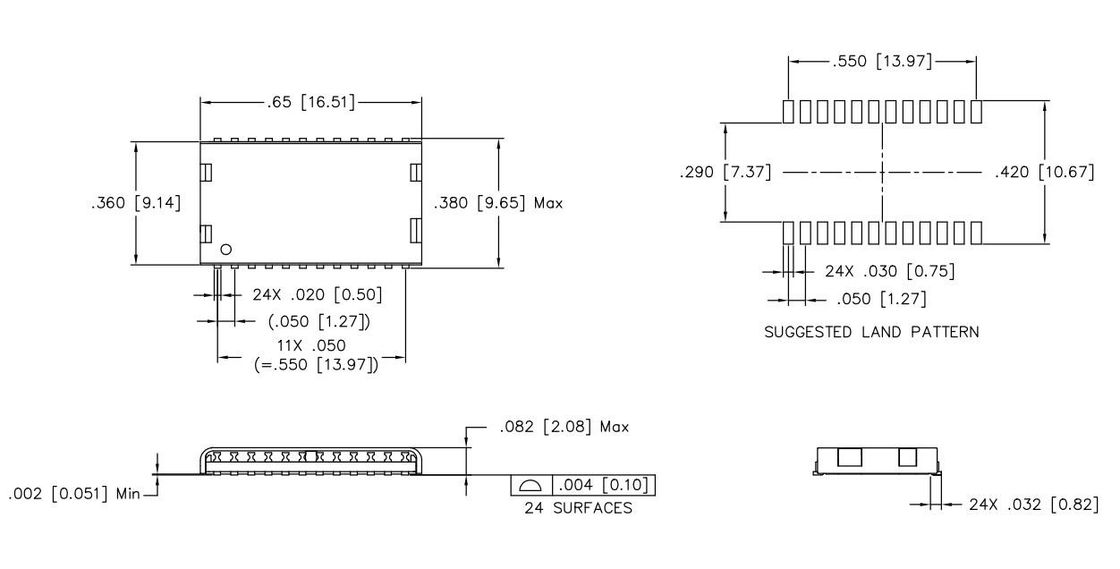

HX5G1010NL 5G BASE-T Single Port PCMCIA Lan Transformer Mechanical Specification:
HX5G1010NL POE PCMCIA ETHERNET Transformer Electrical Schematic:
HX5G1010NL 5G BASE-T Single Port PCMCIA Lan Transformer 24PIN 4PAIR POE 60W Electrical Specifications:
HX6101FNL Similar Part Number :
| HX5G1010NL | HX5G1010NLT | HX5G2003NL |
| HX5G2003NLT | HX5200NL | HX5200NLT |
HX5G1010NL OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
