Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG16305AQNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
RT7-174AAK1A |
Equivalent: |
LPJG16305AQNL |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
RT7-174AAK1A |
Equivalent: |
LPJG16305AQNL |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

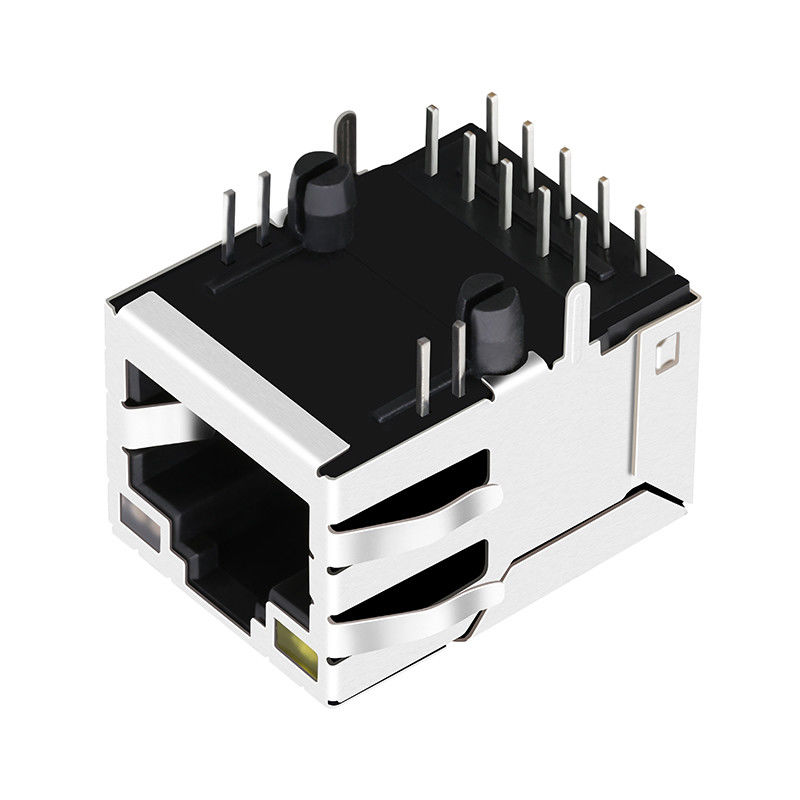

RT7-174AAK1A Compatible LINK-PP LPJG16305AQNL 100/1000 Base-T RJ45 Female Connector Socket for Industrial PC and Fieldbus System (Single Port, Tab Up, Green&Yellow/Green Led)
|
|
| LINK-PP Part Number | LPJG16305AQNL |
| UDE Part Number | RT7-174AAK1A |
| Application-Lan | ETHERNET(NoN PoE) |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Speed | 10/100/1000 Base-T |
| LED Option | Yellow/Green&Orange LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 Port |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.628 |
| Package Width (mm) | 15.95 |
| Search | YES |
| Shield EMI Tabs | With |
| Temperature | 0 TO + 70 |
| AutomDX | YES |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Circuit Diagram:
RT7-174AAK1A Description:
