Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG16402A37NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
ARJM11C7-502-KB-EW2 |
Equivalent: |
LPJG16402A37NL |
Operating Temperature: |
-40℃ TO 85℃ |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
ARJM11C7-502-KB-EW2 |
Equivalent: |
LPJG16402A37NL |
Operating Temperature: |
-40℃ TO 85℃ |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

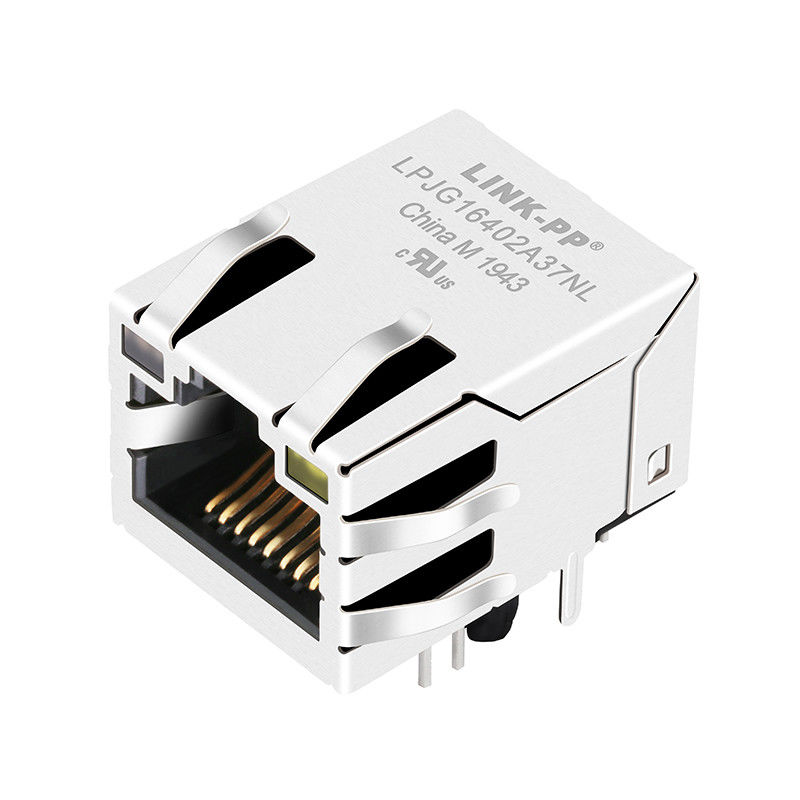

ARJM11C7-502-KB-EW2 Compatible LINK-PP LPJG16402A37NL 100/1000 Base-T RJ45 MagJack for Network Firewall and Fieldbus System (Single Port, Tab UP, Green&Orange/Yellow Led)
| |
| LINK-PP Part Number | LPJG4945ADNL |
| UDE Part Number | ARJM11C7-502-KB-EW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Cores per Port | 8 |
| Speed | 10/100/1000 Base-T |
| LED Option | Green&Orange/Yellow Led |
| Latch | TAB UP |
| Number of Ports | 1X1 Port |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.530/13.45 |
| Package Length (Inches/mm) | 0.837/21.25 |
| Package Width (Inches/mm) | 0.628/15.95 |
| Search | YES |
| Shield EMI Tabs | With |
| Temperature | -40℃ TO 85℃ |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| AutomDX | YES |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
ARJM11C7-502-KB-EW2 100/1000 Base-T 1x1 Port RJ45 MagJack Circuit Diagram:
ARJM11C7-502-KB-EW2 Description:
