Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJD4110BANL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
RJ4530H-R01 |
Equivalent: |
LPJD4110BANL |
Operating Temperature: |
-40℃ TO 85℃ |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
RJ4530H-R01 |
Equivalent: |
LPJD4110BANL |
Operating Temperature: |
-40℃ TO 85℃ |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

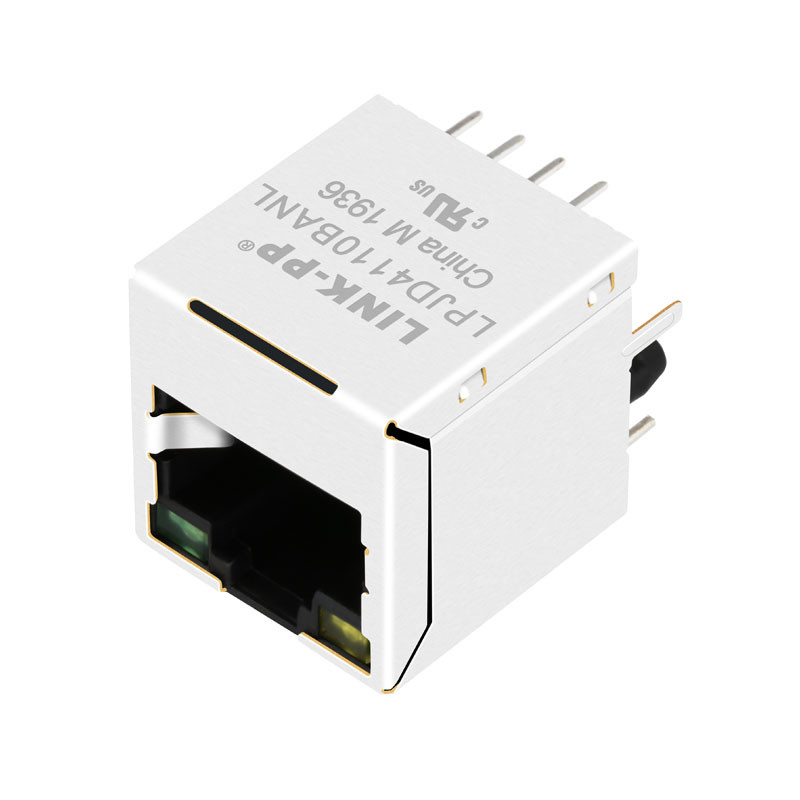

RJ4530H-R01 Compatible LINK-PP LPJD4110BANL 10/100 Base-T Vertical RJ45 Connector Port For Operation Generator (Top Entry Yellow/Green LED)
|
|
| LINK-PP Part Number | LPJD4110BANL |
| UDE Part Number | RJ4530H-R01 |
| Application-Lan | ETHERNET(NoN PoE) |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Cores per Port | 4 |
| Speed | 10/100 Base-T |
| LED Option | Yellow/Green Led |
| Latch | |
| Number of Ports | 1X1 Port |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.665/16.90 |
| Package Length (Inches/mm) | 0.657/16.70 |
| Package Width (Inches/mm) | 0.630/16.00 |
| Search | YES |
| Shield EMI Tabs | Without |
| Temperature | -40℃ TO 85℃ |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| AutomDX | YES |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
The LPJD4110BANL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Intercom, Video Recorder, Patient Care.
RJ4530H-R01 10/100 Base-T Vertical RJ45 Connector Circuit Diagram:
RJ4530H-R01 Description:
RJ4530H-R01 Vertical RJ45 Connector Package:
Package:Tray N.W/pcs:0.008kg
SPQ:50pcs Qty/carton:1000pcs
Carton size:32*30*31cm G.W./carton:8kg
Connector Network Applications:
Networking : Router , Server , Switches , Network Firewall , SMPS.
Consumer : Digital Camera , Video Recorder , Media Player , Game Controller , TV.
Security : Alarm , Smart Camera , Monitoring System , Intercom , Entrance Guard System.
Telecom : Set-top Box , Smart Home , Smart Meters , Satellite , New Energy , Solar Inverter.
Medical : Surgical Equipment , Patient Care , The Handheld Device , Operation Generator , Home Dialysis , Machine.
Industrial l/O : Industrial PC , Embedded Main Board , Ethernet Control , Automation , Fieldbus System , 1/0 Controller.
