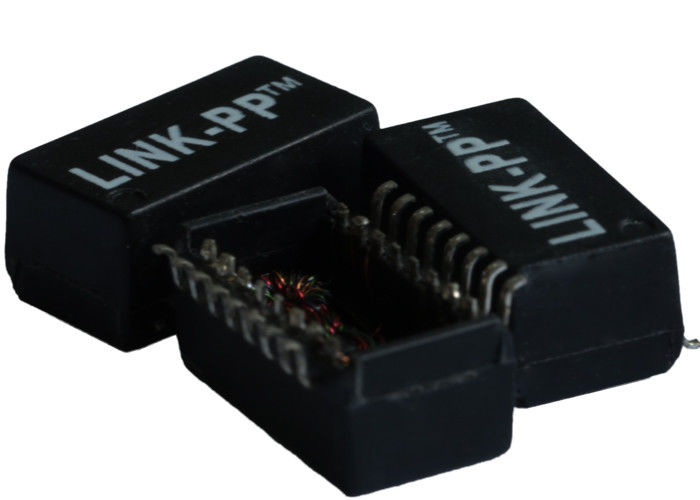

10/100 Mbps Ethernet Magnetic Transformers 7490100111 / 000-7430-30R-LF1

China 10/100 Mbps Ethernet Magnetic Transformers 7490100111 / 000-7430-30R-LF1 supplier
10/100 Mbps Ethernet Magnetic Transformers 7490100111 / 000-7430-30R-LF1 supplier 10/100 Mbps Ethernet Magnetic Transformers 7490100111 / 000-7430-30R-LF1 supplier

Large Image :  10/100 Mbps Ethernet Magnetic Transformers 7490100111 / 000-7430-30R-LF1

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490100111

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 7490100111 Cross PN: LP1188NL
Application: Lan Ethernet(NoN PoE) Package: SMD
PIN Number: 16 Temperature: - 40℃ TO + 85℃
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

7490100111 / 000-7430-30R-LF1 Ethernet Magnetic Transformers 10/100Mbps

1.Telecom transformer modules DATACOM TRANSFORMER
2.ColiStructure: Toroidal
3.10 / 100 base-t transformer for Ethernet Modules
4.SMD,16 pins , 1CT:1CT; 1CT:1CT , SURFACE MOUNT
5.Applications:Used for networking and communication equipments
6. Equivalent to 7490100111 / 000-7430-30R-LF1 Specifications

   such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,

LINK-PP  LAN transformer modules are designed for most popular 10/100 Base TX and Gigabit Ethernet transmission data standards over copper LANs. These LAN modules support the continued convergence of voice and data networking, computing, and storage traffic in the enterprise and data center with excellent insertion loss, return loss, and crosstalk performance and reliability.

These modules can easily be qualified with leading IC/PHY manufacturers chip sets. LAN transformer modules meet IEEE and ANSI standards, which makes for easy inclusion and qualification in the end product.

          Voip Systems Telecom transformer modules Single Port  7490100111
Application
LAN ETHERNET(PoE&NON PoE)
AutomDX
YES
Comment
RoHS Compliant LPXXXXNL Series
Configuration RX
T,C
Configuration TX
T,C
Construction
TRANSFER MOLD
Cores Per Port
4
Number of Ports
1
Package
SMT
Package Height (Inches)
0.225 or other
Package Height (mm)
5.715 or other
Package Length (Inches)
1.12 or other
Package Length (mm)
28.448 or other
Package Width (Inches)
0.63 or other
Package Width (mm)
16.002 or other
RoHS Compliant
YES-RoHS-6
Speed
10/100 BASE-TX Or Gigabit
Temperature
0 TO 70/-40 To +85
Turns Ratio RX
1CT:1CT Or Other Available
Turns Ratio TX
1CT:1CT Or Other Available
Main P/N
LP1188NL, etc
Electrical Specifications
Turns Ratio
50KHz, 0.5V
Chip side
Line side=1CT: 1CT+_2%
Inductance(Ls)
100KHz, 0.1V, 12mA DC Bias:
Chip side
350uH Min
Insertion Loss
1-100MHz: -1.4dB Max
Return Loss
1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
Crosstalk
30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
Hi-Pot
1500Vrms Min
