HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board

Name: HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board
Brand: LINK-PP
SKU: HFJT1-E1G41-L12RL
Rating: 5 (169 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HFJT1-E1G41-L12RL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 60PCS/Tray,22Trays=1320pcs/Carton=37*30*30CM=10KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specification:	HFJT1-E1G41-L12RL	Part No:	LPJG16443AENL
Mouting:	DIP / Side Entry	Ethernet:	10/100/1000Base-T
LEDs:	Optional	Samples:	Available

Specification:	HFJT1-E1G41-L12RL
Part No:	LPJG16443AENL
Mouting:	DIP / Side Entry
Ethernet:	10/100/1000Base-T
LEDs:	Optional
Samples:	Available

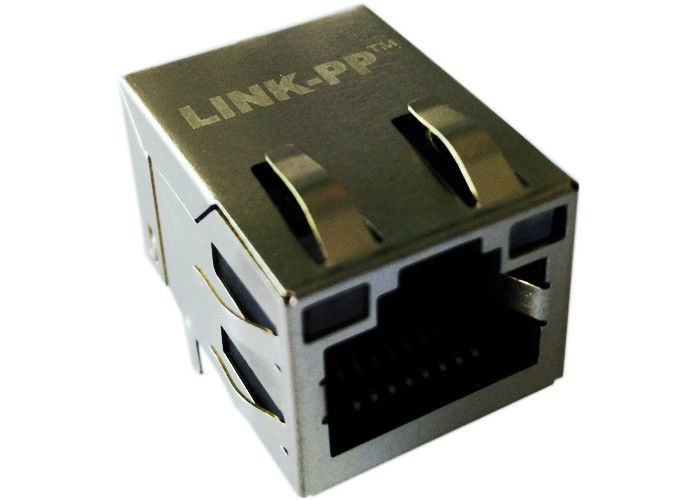

HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board

HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board

FastJack™ 1x1 Tab-Up Gigabit Short Body RJ45 21.3mm Length

Gigabit (10/100/1000) Ethernet RJ45
IEEE802.3ab Compliant
LINK-PP LPJG16443AENL
350uH min OCL at 8mA DC Bias Across the Full Temp Range
30µ” Gold Plating (min) on Contacts
100% Compliance Testing
1500Vrms Hi-Pot
Proprietary Robust Contact Design
Cross Specification HFJT1-E1G41-L12RL

HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board 0

HFJT1-E1G41-L12RL RJ45 With Integrated Magnetics 10 vias PCB Development Board 1

FastJack™ 1x1 Tab-Up Gigabit Short Body RJ45 , Meeting IEEE 802.3

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
