RJLB-001TC1 RJ45 Integrated Magnetics PCb Layout LAN 10/100BASE TX Ethernet

Name: RJLB-001TC1 RJ45 Integrated Magnetics PCb Layout LAN 10/100BASE TX Ethernet
Brand: LINK-PP
SKU: RJLB-001TC1
Price: 0.88 USD
Availability: InStock
Rating: 4.9 (178 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJLB-001TC1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: $0.88

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Specifications:	RJLB-001TC1	P/n:	LPJ4068EENL
Connector Type:	RJ45	Applications:	10/100 Base-T
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Samples:	Free

Specifications:	RJLB-001TC1
P/n:	LPJ4068EENL
Connector Type:	RJ45
Applications:	10/100 Base-T
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Samples:	Free

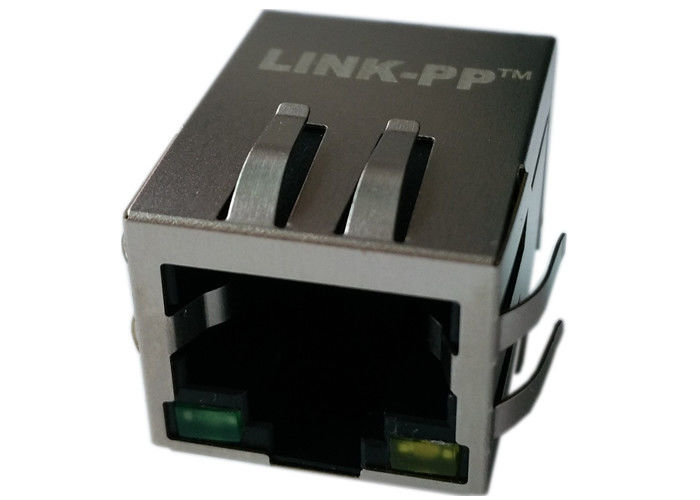

RJLB-001TC1 RJ45 Integrated Magnetics PCb Layout LAN 10/100BASE TX Ethernet

RJLB-001TC1 RJ45 Integrated Magnetics PCb Layout LAN 10/100BASE TX Ethernet

RJLB-001TC1

RJ45 With Integrated Magnetics

Rj-45 With Magnetics

Rj45 Integrated 10/100 Lan

LAN 10/ 100BASE T RJ45 Jack With Magnetic module

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.

RJLB-001TC1 RJ45 Integrated Magnetics PCb Layout LAN 10/100BASE TX Ethernet

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
