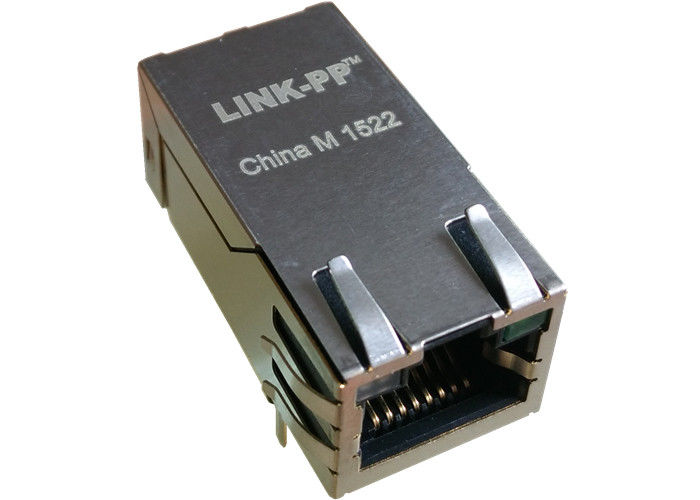

Magnetics RJ45 1-1840461-8 Gigabit Ethernet Jack 3-1840461-1 Pinout 2-1840461-1

Name: Magnetics RJ45 1-1840461-8 Gigabit Ethernet Jack 3-1840461-1 Pinout 2-1840461-1
Brand: LINK-PP
SKU: 1-1840461-8 / 2-1840461-1 / 3-1840461-1
Rating: 4.5 (111 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 1-1840461-8 / 2-1840461-1 / 3-1840461-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Part Number:	1-1840461-8 / 2-1840461-1	Specifications:	1-1840461-8 / 2-1840461-1
Connector Type:	Gigabyte Ethernet	Applications:	10/100 Lan
Mounting Type:	Through Hole	Orientation:	90～ Angle (Right)
Termination:	Solder	Shielding:	Shielded, EMI Finger

Part Number:	1-1840461-8 / 2-1840461-1
Specifications:	1-1840461-8 / 2-1840461-1
Connector Type:	Gigabyte Ethernet
Applications:	10/100 Lan
Mounting Type:	Through Hole
Orientation:	90～ Angle (Right)
Termination:	Solder
Shielding:	Shielded, EMI Finger

Magnetics RJ45 1-1840461-8 Gigabit Ethernet Jack 3-1840461-1 Pinout 2-1840461-1

1-1840461-8 / 2-1840461-1

Magnetic RJ45 Jack

Gigabit jack Rj45

10/100/1000 Lan

Designing Model: 【1-1840461-8 / 1-1840461-1】

♦ Tyco 1-1840461-8 Magnetics Rj45 Modular jack 1-1840461-1 datasheet

♦ Compatible with a variety of 10/100/1000 transceiver ICs
♦ Rj45 connector with magnetics 10/100/1000 Base-T 1-1840461-8
♦ Rj45 connector with integrated 2-1840461-1 pinout

♦ Gigabit Ethernet Connector 1840461-1 pinout
♦ Thernet To Rj45 / lan port Rj45 1-1840461-8

♦ Shielded connector with integrated 10/100/1000 magnetics

♦ Designed to meet IEEE802.3u requirement. 2-1840461-1
♦ Conserves minimizing PCB space. / Rj45 magnetics 3-1840461-1
♦ Rj45 with magnetics / Magnetic Rj45 PDF/ 3D File/Price/datasheet/Pinout.

Mass Production Model:【LPJXXXXNL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

Magnetics RJ45 1-1840461-8 Gigabit Ethernet Jack 3-1840461-1 Pinout 2-1840461-1

1. Product Type Features:
1) Product Type : Connector Female
2) Jack Type = RJ45 To Ethernet
3) Profile = Standard Or Low Profile
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded Or Unshielded
4. Termination Related Features:
1) EMI Finger - With Or Without
2) Termination Method = Soldering
5. Body Related Features:
1) Port Configuration = Single/Multi/Stacked
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Solder capable to 245°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green
2) Right LED Color (Position #2) = Yellow
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
12.Power Over Ethernet: With Or Without

Ethernet Applications

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Advantage

1-1840461-8 / 2-1840461-1 / 3-1840461-1 10/100/1000 magnetics jack
18 years production experience,
2600 staff,
100% test
