Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 20PT1024X LF / 13F-2010CNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
PN.1: |
20PT1024X LF / 13F-2010CNL |
Application: |
FE Transformer |
Turn Ratio: |
1:1 |
Pins: |
40 |
Hipot: |
1500V |
Mass Production: |
LP2064NL |
PN.1: |
20PT1024X LF / 13F-2010CNL |
Application: |
FE Transformer |
Turn Ratio: |
1:1 |
Pins: |
40 |
Hipot: |
1500V |
Mass Production: |
LP2064NL |
| 20PT1024X LF | 13F-2010CNL | 10/100 Transformer | 1:1 Turn Ratio | Cross LP2064NL |
Electrical Specifications @ 25°C
1.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
2.Pri OCL: 350uH MIN
@100KHz,0.1V,8mADC Bias.
3.Insertion Loss:
1-100MHz:-1.15dB MAX
4.Return Loss(dB MIN):
1-30MHz:-18 30-60MHz:-14
60-80MHz:-12
5.Crosstalk:
1-100MHz:-38dB MIN
6.CMRR: 1-100MHz:-40dB TYP
7.Hi-Pot: 1500Vrms @0.5mA
8.Operating Temperature: 0℃～70℃
| 20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter | |||
|---|---|---|---|
| 0875-1G2T-E3 | C855-2B4R-54 | 08B1-1X4T-36-F | 0879-2C6R-54 |
| 13F-2010CNL | 0833-2X6R-55-F | 0833-2X1T-33-F | C850-2G6R-54 |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
| L826-1X4T-23-F | 20PT1024X LF | L826-1X4T-43-F | 0895-2X6R-GK |
| 13F-2010CNL | S553-6500-D8 | S560-6600-GG | S553-6500-43 |
| S553-1006-AE | S553-6500-D9 | 20PT1024X LF | S553-6500-44 |
| S553-1084-01 | S553-6500-E2 | S560-6600-GK | 13F-2010CNL |
| S553-1084-11 | S553-6500-E3 | S560-6600-GM | S553-6500-55 |
| S553-1506-AE | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| 13F-2010CNL | S553-6500-E5 | 20PT1024X LF | 13F-2010CNL |
NOTES:
1.For adapter cards,maus,hubs,and motherboard.applications
2.Designed to meet or exceed IEEE802.3,10Base-T specifications
3.Available with common mode chokes for EMI suppression
4.SMT,THT,DIP etc package
5.RoHS"NL" peak solder rating 260℃.
6.OCL,Cww and LL are measured at 20 mVrms,100KHz

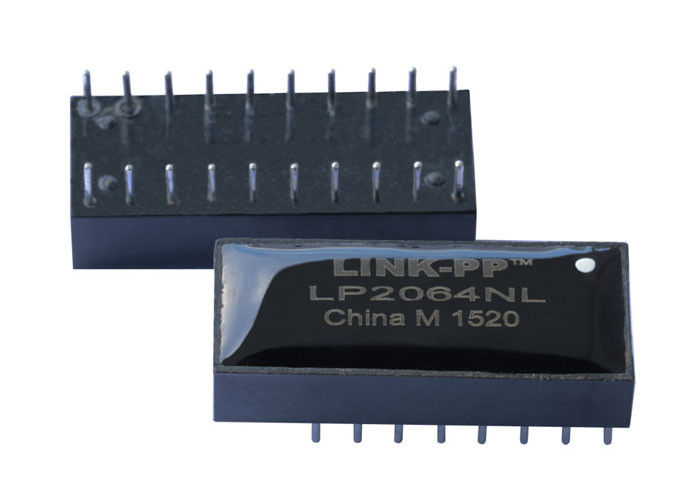

20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter
