Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJMG163123101NR
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Negotiate & Target & Competitive
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
RJMG163123101NR |
Connector Type: |
Ethernet Port Rj45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Mounting: |
Thru-hole |
Shielding: |
Shielded, EMI Finger |
Part Number: |
RJMG163123101NR |
Connector Type: |
Ethernet Port Rj45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Mounting: |
Thru-hole |
Shielding: |
Shielded, EMI Finger |
|
RJMG163123101NR |
RJ45 With Integrated Magnetics |
Rj-45 With Led |
Rj45 Integrated 10/100 Lan |
RJMG163123101NR Specifications / datasheets / PDF / Cross/ replacement/Price
TEST NOTES(25±5℃)
1.TR:(100KHz,100mV);
TX=1CT∶1CT ±3% RX=1CT∶1CT ±3%
P2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃/-40℃～+85℃

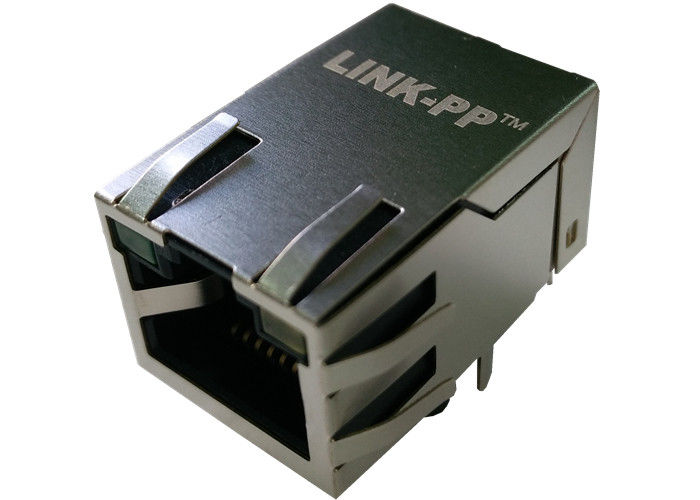

| RJMG163123101NR RJ45 With Integrated Magnetics Rjmag 10/100 Single Port W/ LEDs | |||
|---|---|---|---|
| PTC11XX-09D | RJMG163123101NR | PTC1111-09G | RJMG-6312-81-04 |
| PH162479G | PTC111101 | PTC111100 | RJMG-6315-71-01 |
| RJMG163123101NR | PTC111189L1G | RJMG163123101NR | RJMG63218101 |
| PTC1111-54L1VG | PTC1111-01LG | 13F-61JGYDPH2NL | RJMG-6321-81-01 |
| PTC11XX-01 | RJMG163123101NR | PTC1111-54L1VG | RJMG63445601 |
| RJMG163123101NR | PTC111145G | PTC1111-54L1VG | RJMG-7300-31-01 |
| PTC1111-51PG | PTC1111-01S | PTC111101G | RJMG73117101 |
| PTC1111-01SG | PTC1111-45L2G | RJMG63117102 | RJMG-7312-71-01 |
| RJMG221129910NR | RJMG-6300-31-01 | RJMG63118601 | RJMG73128101 |
| RJMG231022610ER | RJMG-6300-31-04 | RJMG631186A1 | RJMG73128601 |
| RJMG231022830ER | RJMG-6300-31-08 | RJMG6312-71-01 | RJMG-7326-71-01 |
| RJMG231022830ER | RJMG-6311-71-01 | RJMG231116230EL | RJMG-B312-71-01 |
| RJMG2310228A0ER | RJMG163123101NR | RJMG-6312-81-01 | RJMG163448101NR |
| RJMG1010200A0NR | RJMG16321B101NR | RJMG163123101NR | RJMG163623101NR |
| RJMG1010211A0NR | RJMG1-6321-B1-01NR | RJMG163127101NR | RJMG16412B101ER |
| RJMG12163226600R | RJMG163267101NR | RJMG163128101NR | RJMG168007101GR |
| RJMG133218101DR | RJMG163268101NR | RJMG163213101NR | RJMG168008101GR |
| RJMG163003101NR | RJMG163427101NR | RJMG163217101NR | RJMG168009101GR |
| RJMG163007101NR | RJMG163447101NR | RJMG163218101NR | RJMG168117101GR |
| RJMG163008101NR | RJMG168129101GR | RJMG168217101GR | RJMG168118101GR |
| RJMG163009101NR | RJMG163118101NR | RJMG168218101GR | RJMG168119101GR |
| RJMG163117101NR | RJMG168267101GR | RJMG168219101GR | RJMG168127101GR |
RJMG163123101NR RJ45 With Integrated Magnetics Rjmag 10/100 Single Port W/ LEDs
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
