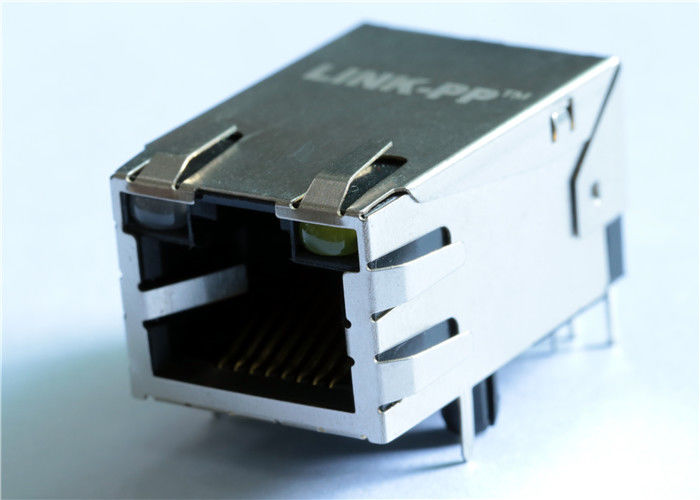

RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps

Name: RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps
Brand: LINK-PP
SKU: RJMG163128101NR
Rating: 4.6 (177 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJMG163128101NR

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Negotiate & Target & Competitive

Packaging Details: 60PCS/Tray,20 Trays=37*30*30CM=1200PCS=11.5 KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Part Number:	RJMG163128101NR	Pin Compatible:	LPJ2011KGNL
Applications:	10/100 Base-T	Mounting Type:	PHT
Orientation:	90 Right Angel	Termination:	Solder

Part Number:	RJMG163128101NR
Pin Compatible:	LPJ2011KGNL
Applications:	10/100 Base-T
Mounting Type:	PHT
Orientation:	90 Right Angel
Termination:	Solder

RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps

RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps

RJMG163128101NR

RJ45 With Integrated Magnetics

Rj-45 With Led

Rj45 Integrated 10/100 Lan

RJMG163128101NR Specifications / datasheets / PDF / Cross/ replacement/Price

LINK-PP LPJ2011KGNL Made In China Equivalent Part

TEST NOTES(25±5℃)

1.TR:(100KHz,100mV);
TX=1CT∶1CT ±3% RX=1CT∶1CT ±3%

2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.

RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps
RJMG163128101NR	RJMG163123101NR	RJMG163127101NR	RJMG-6312-81-04
PH162479G	RJMG163128101NR	RJMG163127101NR	RJMG-6315-71-01
RJMG163123101NR	RJMG163127101NR	RJMG163123101NR	RJMG63218101
PTC1111-54L1VG	RJMG163127101NR	13F-61JGYDPH2NL	RJMG-6321-81-01
RJMG163127101NR	RJMG163123101NR	PTC1111-54L1VG	RJMG63445601
RJMG163123101NR	PTC111145G	PTC1111-54L1VG	RJMG-7300-31-01
PTC1111-51PG	PTC1111-01S	RJMG163127101NR	RJMG73117101
PTC1111-01SG	PTC1111-45L2G	RJMG63117102	RJMG-7312-71-01
RJMG221129910NR	RJMG-6300-31-01	RJMG163128101NR	RJMG73128101
RJMG231022610ER	RJMG-6300-31-04	RJMG631186A1	RJMG73128601
RJMG231022830ER	RJMG-6300-31-08	RJMG6312-71-01	RJMG-7326-71-01
RJMG231022830ER	RJMG-6311-71-01	RJMG231116230EL	RJMG-B312-71-01
RJMG2310228A0ER	RJMG163123101NR	RJMG-6312-81-01	RJMG163448101NR
RJMG1010200A0NR	RJMG163128101NR	RJMG163123101NR	RJMG163623101NR
RJMG1010211A0NR	RJMG1-6321-B1-01NR	RJMG163127101NR	RJMG16412B101ER
RJMG12163226600R	RJMG163267101NR	RJMG163128101NR	RJMG168007101GR
RJMG133218101DR	RJMG163268101NR	RJMG163213101NR	RJMG168008101GR
RJMG163003101NR	RJMG163427101NR	RJMG163217101NR	RJMG168009101GR
RJMG163007101NR	RJMG163447101NR	RJMG163218101NR	RJMG168117101GR
RJMG163008101NR	RJMG168129101GR	RJMG168217101GR	RJMG168118101GR
RJMG163009101NR	RJMG163127101NR	RJMG168218101GR	RJMG168119101GR
RJMG163117101NR	RJMG168267101GR	RJMG168219101GR	RJMG163128101NR

RJMG163128101NR Magjack Rj45 With Integrated Magnetics and Leds Lan 10/100mbps

NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max

RJMG163128101NR
