Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 6605835-1
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specifications: |
6605835-1 |
P.N: |
LPJG16314CNL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
Samples: |
Free |
Hipot: |
1500V |
Specifications: |
6605835-1 |
P.N: |
LPJG16314CNL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
Samples: |
Free |
Hipot: |
1500V |
|
TE 6605835-1 |
||||||||||||||||||||||||||||||||
|
Specification |
6605835-1 Tyco |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Equivalent Cross Compatible |
LPJG16314CNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

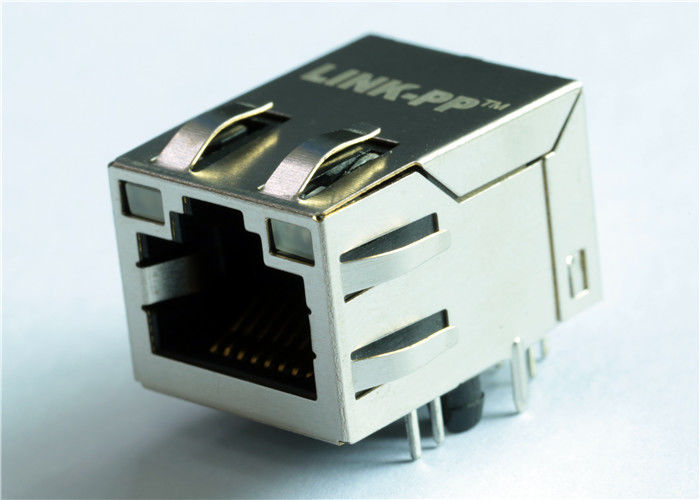

Gigabit Rj45 Jack Wo/LED |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
TE 6605835-1 Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@ 100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio:
TX=1:1 RX=1:1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-[12-20LOG(f/50)]
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20LOG(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: 0℃～70℃.
