Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 101110FHAJPM406ZA
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
PN: |
101110FHAJPM406ZA |
Made In China: |
SM-LPJG17311A8NL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
Port: |
1,2,4,6,8 Flexible |
Hipot: |
1500V |
PN: |
101110FHAJPM406ZA |
Made In China: |
SM-LPJG17311A8NL |
Application: |
1000Base-T |
Ethernet: |
GIG Ethernet |
Port: |
1,2,4,6,8 Flexible |
Hipot: |
1500V |
|
101110FHAJPM406ZA FCI |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
101110FHAJPM406ZA |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG17311A8NL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

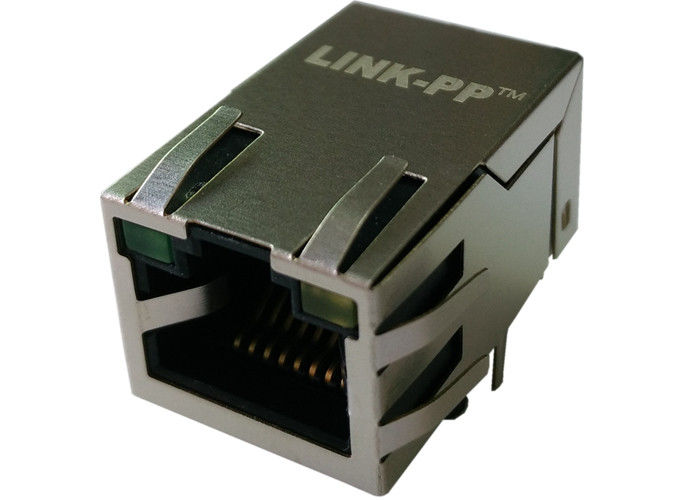

Gigabit Rj45 Jack W/LED |
|||||||||||||||||||||||||||||||
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
101110FHAJPM406ZA Electrical Specifications @25℃
1.Turn Ratio(%%P2%):
1CT∶1
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1～100MHz
-1.2dB MAX @ 100～125MHz
4.Return Loss(@100Ω):
-18dB MIN @ 1～30MHz
-16dB MIN @ 30～60MHz
-12dB MIN @ 60～80MHz
-10dB MIN @ 80～100MHz
5.Cross talk:
-30dB MIN @ 1～100MHz
6.Common Mode Rejection:
-30dB MIN @ 1～100MHz
7.Hipot Test: 1500Vrms MIN
8.Operatingt Temperature: 0 TO 70℃.
