Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: XRJH-01D-1-HA1-180
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
PN: |
XRJH-01D-1-HA1-180 |
Made In China: |
SM-LPJG17329BGNL |
Application: |
1000Base-T |
Ethernet: |
Gigabit Lan 10/100/1000 |
LEDs: |
Flexible |
Hipot: |
1500V |
PN: |
XRJH-01D-1-HA1-180 |
Made In China: |
SM-LPJG17329BGNL |
Application: |
1000Base-T |
Ethernet: |
Gigabit Lan 10/100/1000 |
LEDs: |
Flexible |
Hipot: |
1500V |
|

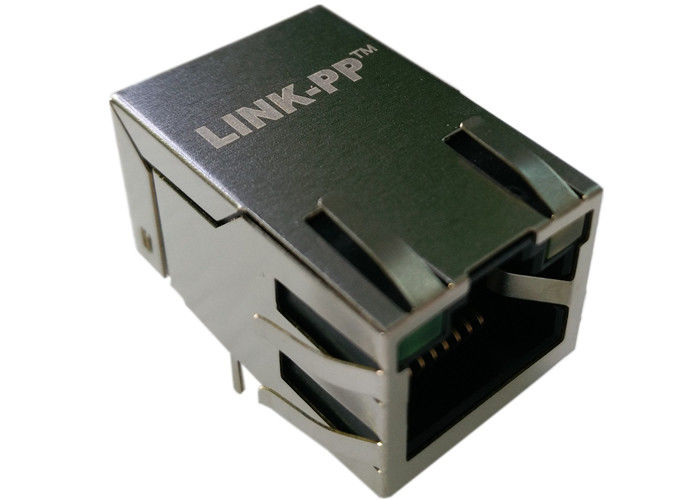

XRJH-01D-1-HA1-180 |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
XRJH-01D-1-HA1-180 |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG17329BGNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj-45 With Magnetics |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
XRJH-01D-1-HA1-180 Electrical Specifications @25℃
1.Turns Ratio(±3%):
1CT:1CT
2.Return Loss:
1-30MHz:-16dB Min
40MHz:-13.5dB Min
60-100MHz:-10dB Min
3.Crosstalk:
1-100MHz:-30dB Min
4.Insertion Loss:
1-100MHz: -1.2dB Max
5.Common Mode Rejection:
1-100MHz:-30dB Min
6.Inductance:
350uH MIN @100KHz,0.1V,8mA DC Bias
7.Hi-Pot : 1500VAC/0.5mA
8.Operating Temperature: 0℃～70℃.
