Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ON316655
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
PN: |
ON316655 |
Made In China: |
SM-LPJG16467A71NL |
Family: |
Magnetics Rj45 Connector |
Ethernet: |
Gigabit Lan 10/100/1000 |
LEDs: |
Flexible |
Hipot: |
1500V |
PN: |
ON316655 |
Made In China: |
SM-LPJG16467A71NL |
Family: |
Magnetics Rj45 Connector |
Ethernet: |
Gigabit Lan 10/100/1000 |
LEDs: |
Flexible |
Hipot: |
1500V |
|
ON316655 XFMRS |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
ON316655 XFMRS |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJG16467A71NL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |

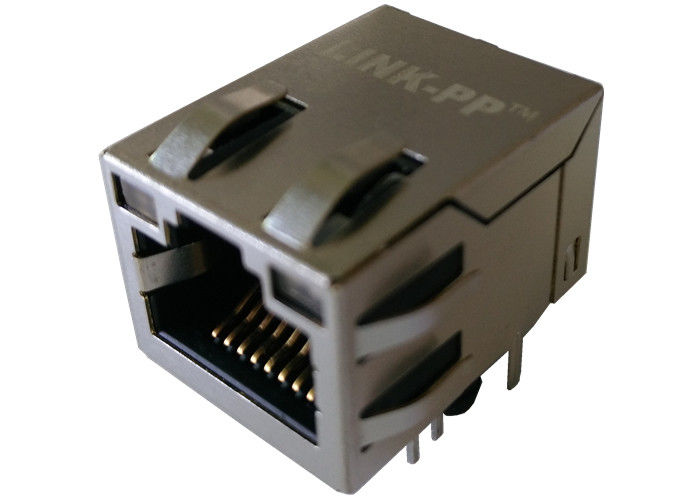

Rj-45 With Magnetics |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
ON316655 Electrical Specifications @25℃
1.OCL(100KHz 0.1V 8mA): 350uH Min
2.Turns Ratio: 1CT∶1CT %%P3%P3.Insertion Loss:
1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk:
1-100MHz:-35 dB Typ
6.Common Mode Rejection:
0.1-30MHz:-50 dB Typ
30-60MHz:-40dB Typ
60-100MHz:-35dB Typ
7.Isolation: 1500Vrms
8.Operating Temperature: -40℃～+85℃
