Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JX10-0061NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Midcom PN: |
JX10-0061NL |
Made In China: |
SM-LPJ6011BBNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Port: |
Single |
Hipot: |
1500V |
Midcom PN: |
JX10-0061NL |
Made In China: |
SM-LPJ6011BBNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Port: |
Single |
Hipot: |
1500V |
|

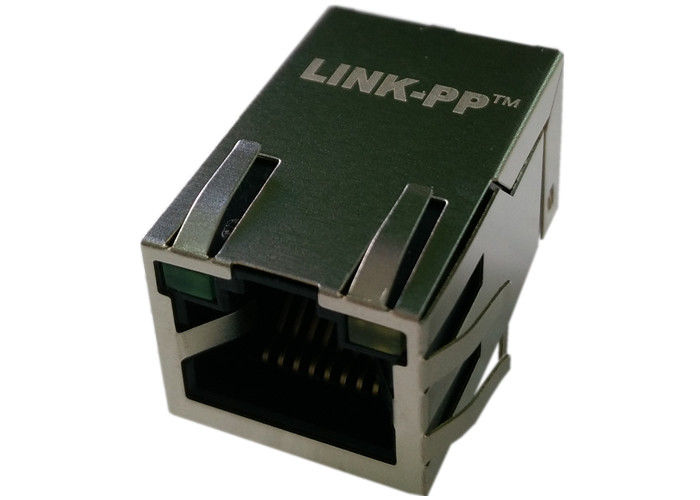

JX10-0061NL Pulse |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
JX10-0061NL |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJ6011BBNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 Magnetics Integrated |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
JX10-0061NL TEST NOTES(25±5℃)
1.TR:(100KHz,0.1V);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.OCL:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P2),(P7,P8)=350uH MIN
3.HIPOT:
PINS(P1,P3,P2)TO (J1,J2)=1500VAC FOR 60 SECONDS
PINS(P7,P6,P8)TO (J3,J6)=1500VAC FOR 60 SECONDS
4.INSERTION LOSS:
-1.0dB MAX @ 0.3MHz TO 100MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @ 1MHz TO 50MHz
-20dB MIN @ 50MHz TO 150MHz
8.OPERATING TEMPERATURE: -40℃～+85℃.
