Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: SI-51005-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
SI-51005-F |
Part No: |
SM-LPJG17332AWNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Hipot: |
1500V |
Samples: |
Available Free |
Specification: |
SI-51005-F |
Part No: |
SM-LPJG17332AWNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Hipot: |
1500V |
Samples: |
Available Free |
|

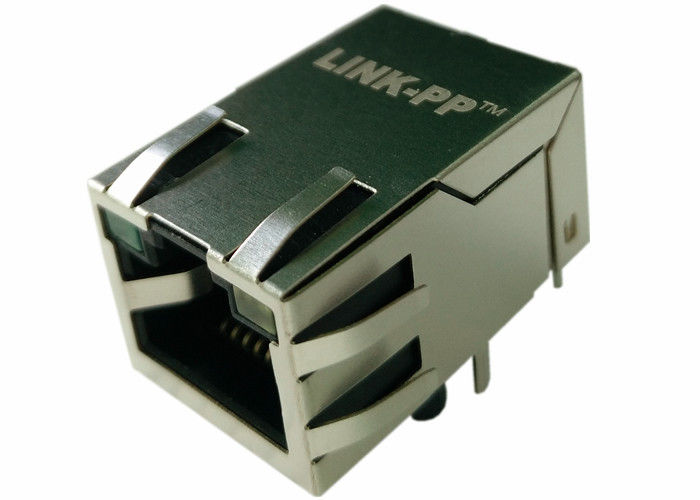

SI-51005-F Pulse |
||||||||||||||||||||||||||||||||
|
Specification |
SI-51005-F |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Part NO Cross |
SM-LPJG17332AWNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 Magnetics Integrated |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
Belfuse SI-51005-FElectrical Specifications:
1.Turns Ratio(%%P2%):
1CT:1CT
2.Inductance: 350uH Min
@100KHz,0.1V,8mA DC BIAS
3.Insertion Loss:
0.1-100MHz:-1.2dB Max
4.Return Loss(dB Min):
0.5-40MHz:-18
40-100MHz:-12+20LOG(f/80MHz)
5.Cross Talk(dB Min):
1-30MHz:-35 30-80MHz:-24
80-100MHz:-25
6.CM TO CM REJECTION:
0.1-100MHz:-30dB Min
7.CM TO DM Rejection:
0.1-100MHz:-35dB MIN
8.Hipot: 1500Vrms.
9.Operating Temperature: 0℃～70℃
