Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJMG163218101NR
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Midcom PN: |
RJMG163218101NR |
Made In China: |
LPJ2011KHNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Port: |
Single With LEDs |
Hipot: |
1500V |
Midcom PN: |
RJMG163218101NR |
Made In China: |
LPJ2011KHNL |
Application: |
Embedded Computing |
Category: |
Fast Rj45 Magjack |
Port: |
Single With LEDs |
Hipot: |
1500V |
|

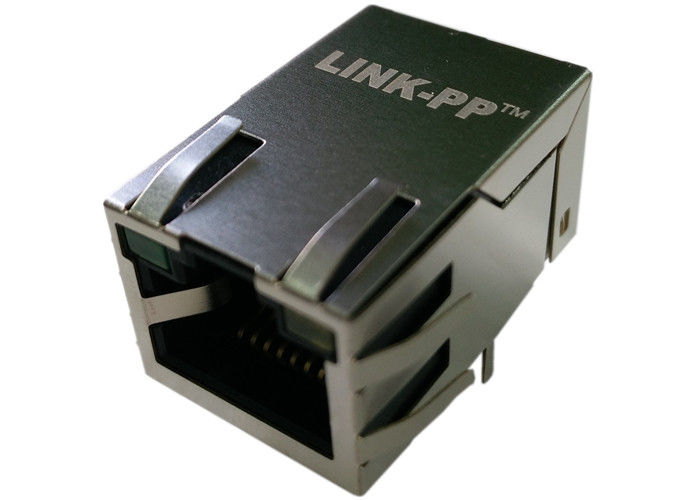

RJMG163218101NR |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
RJMG163218101NR |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
LPJ2011KHNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 Transformer Integrated |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
RJMG163218101NR Electrical Specifications
1.Turns Ratio(±5%):
TX=1CT:1 RX=1CT:1CT
2.Inductance(100KHz/0.1V@8mA):
350uH min
3.Insertion Loss:
1-100MHz:-1.0dB max
4.Return Loss(dB min):
1-30MHz:-18
30-60MHz:-[18+20Log(f/30)]
60-80MHz:-12
5.Crosstalk:
0.3-100MHz:-35dB min
6.Cm-Cm Rejection:
0.3-100MHz:-30dB min
7.Cm-Dm Rejection:
0.3-100MHz:-35dB min
8.Hipot:1500Vrms MIN
9.Operating Temperature:0℃～70℃./-40℃～85℃.
