Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JK0-0187NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Midcom PN: |
JK0-0187NL |
Made In China: |
SM-LPJK0071AWNL |
Application: |
Embedded Computing |
Category: |
Gigabit Rj45 Magjack |
Port: |
Single With LEDs |
Hipot: |
1500V-2250V |
Midcom PN: |
JK0-0187NL |
Made In China: |
SM-LPJK0071AWNL |
Application: |
Embedded Computing |
Category: |
Gigabit Rj45 Magjack |
Port: |
Single With LEDs |
Hipot: |
1500V-2250V |
|

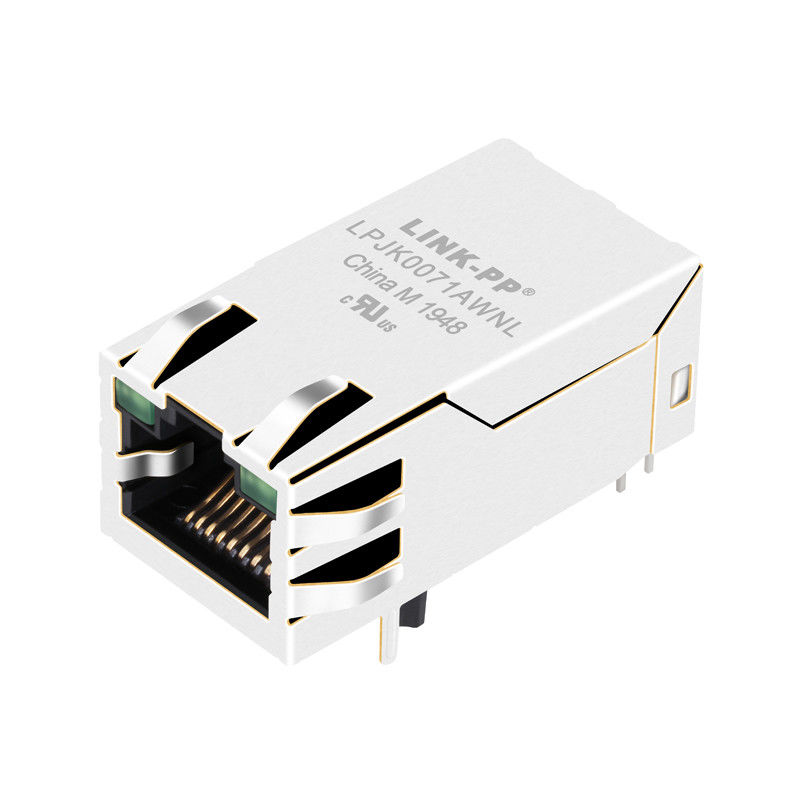

Pulse JK0-0187NL |
||||||||||||||||||||||||||||||||
|
Trader Part Number |
JK0-0187NL |
|
||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Made in China |
SM-LPJK0071AWNL |
|||||||||||||||||||||||||||||||
|
Manufacturer |
LINK-PP China |
|||||||||||||||||||||||||||||||
|
Description |
Rj45 Transformer 1000M |
|||||||||||||||||||||||||||||||
|
Documents Available |
PDF/3D/Step/IGS/Price/Cross |
|||||||||||||||||||||||||||||||
|
Quantity Available |
2,000 PCS or 4 weeks |
|||||||||||||||||||||||||||||||
JK0-0187NL Electrical Specifications
1.OCL(100KHz,0.1V,8mA DC Bias):350uH min
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-10MHz:-20 30MHz:-16
60-80MHz:-12 80-100MHz:-10
5.Crosstalk(dB MIN):
1-10MHz:-40 32-65MHz:-35
65-100MHz:-30
6.CMR(dB MIN):
1-125MHz:-30 125-500MHz:-20
7.HI-POT:1500-2250V
8.Operating Temperature: 0～70℃./ -40～85℃.
