Surface Mounting Telecom Transformer S558-10GB-02V 24 Position

China Surface Mounting Telecom Transformer S558-10GB-02V 24 Position supplier

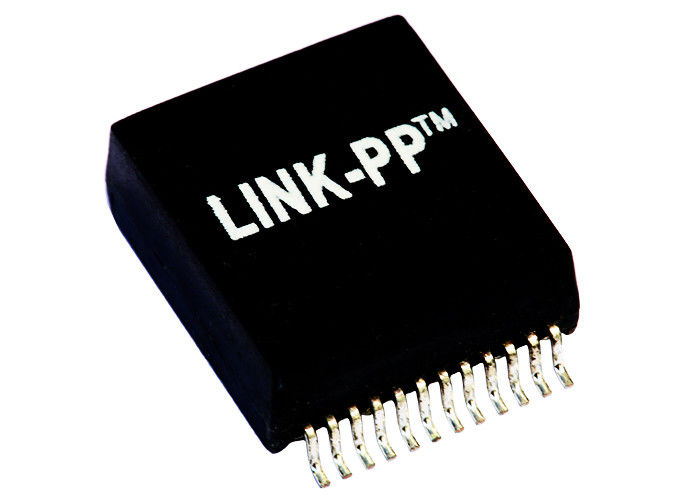

Large Image :  Surface Mounting Telecom Transformer S558-10GB-02V 24 Position

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: S558-10GB-02V

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 5 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Pulse PN: S558-10GB-02V Made In China: LP7008NL
Family: Ethernet Transformer Mounting: SMD
Pins: 24 Pins Samples: Free Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer

Belfuse S558-10GB-02V Equivalent/Cross Pin to Pin
Trader Part Number
S558-10GB-02V
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China
LP7008NL
Manufacturer
LINK-PP China
Description
Ethernet Transformer Modules
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
2,000 PCS or 4 weeks



S558-10GB-02V Product Features:
Electrical Specifications @25℃
1.ISOLATION:1500 Vrms
2.INSERTION LOSS:
  -1.1dB MAX @1MHz-100MHz
3.RETURN LOSS:
  -16dB Min @1-30MHz
  -14dB Min @40MHz
  -13dB Min @50MHz
  -12dB Typ @60-80MHz
4.Differential to Common Mode Rejection:
  -43dB Min @30MHz
  -37dB Min @60MHz
  -33dB Min @100MHz
5.Crosstalk:
  -43dB Min @30MHz
  -37dB Min @60MHz
  -33dB Min @100MHz
Belsufe S558-5999-W2-F 10/100BASE-TX Ethernet Isolation Transformer
