Rjmag 10/100, Single Port Leds Green RJMG168118101GR SMT FASTJack

Name: Rjmag 10/100, Single Port Leds Green RJMG168118101GR SMT FASTJack
Brand: LINK-PP
SKU: RJMG168118101GR
Rating: 4.5 (114 reviews)

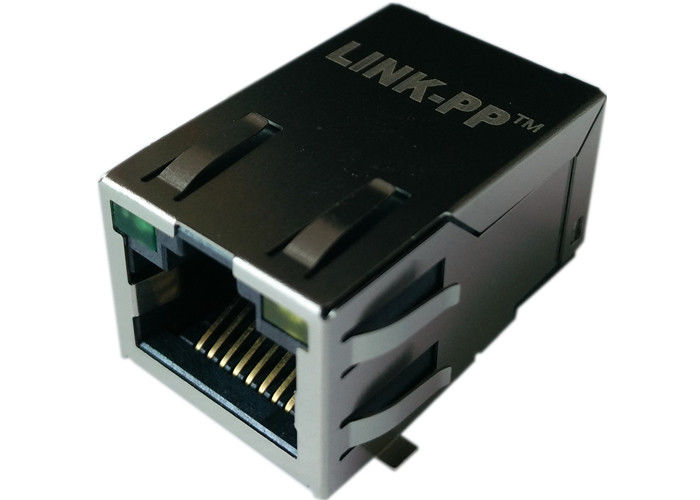

Large Image : Rjmag 10/100, Single Port Leds Green RJMG168118101GR SMT FASTJack

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	ISO9001,SGS,UL,CE,REACH163
Model Number:	RJMG168118101GR

Payment & Shipping Terms:

Minimum Order Quantity:	200 PCS
Price:	Supportive
Packaging Details:	Tray & Carton&Reel
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	3000000/Month

Contact Now

Detailed Product Description

Designe PN#:	RJMG168118101GR	Made In China:	SM-LPJ30XXXXNL
Category:	SMT Rj45 Connector	Interface:	10/100Mbps Lan
LED:	Flexible Designed	Samples:	Available Free
Highlight:	rj45 smt connector , surface mount rj45 connector

Rjmag 10/100, Single Port Leds Green RJMG168118101GR SMT FASTJack

RJMG168118101GR

Trader Part Number

RJMG168118101GR

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ30XXXXNL

Manufacturer

LINK-PP China

Description

Mag45-Rj45

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

RJMG168118101GR ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: -40℃～+85℃
