XFATM2MA-COMBO4-4M Rj45 Quad Port 10/100Base-T Shield Tab-down

Name: XFATM2MA-COMBO4-4M Rj45 Quad Port 10/100Base-T Shield Tab-down
Brand: LINK-PP
SKU: XFATM2MA-COMBO4-4M
Price: 0.11 USD
Availability: InStock
Rating: 4.9 (150 reviews)

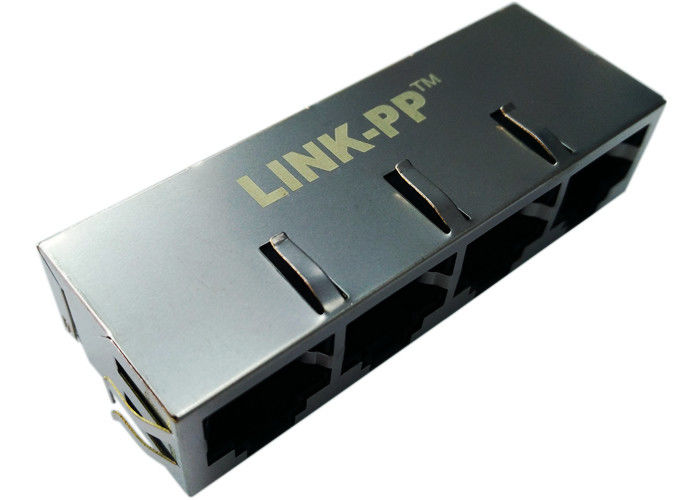

Large Image : XFATM2MA-COMBO4-4M Rj45 Quad Port 10/100Base-T Shield Tab-down

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	LINK-PP
Certification:	ISO9001,SGS,UL,CE,REACH163
Model Number:	XFATM2MA-COMBO4-4M

Payment & Shipping Terms:

Minimum Order Quantity:	50/500/1000/25K
Price:	$0.11-$12
Packaging Details:	Tray
Delivery Time:	Stock
Payment Terms:	TT,NET30/60/90 Days
Supply Ability:	208K/Month

Contact Now

Detailed Product Description

Part Number:	XFATM2MA-COMBO4-4M	Samples:	Active&Available
Category:	Multi-port RJ45	Interface:	10/100-Mbps
Port:	1x4	Made In China:	SM-LPJ4XXXXCNL
Highlight:	multi port connector , modular jacks rj45

XFATM2MA-COMBO4-4M Rj45 Quad Port 10/100Base-T Shield Tab-down

XFATM2MA-COMBO4-4M = XFATM2MA-C4-4M

Trader Part Number

XFATM2MA-COMBO4-4M

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

SM-LPJ4XXXXCNL

Manufacturer

LINK-PP China

Description

Multi FastJack 4 Ports

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2000,000 PCS or 3weeks

XFATM2MA-COMBO4-4M ELECTRICAL SPECFICATIONS @25℃ NOTES:
1.Turns Ratio:
1CT:1CT & 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
2～30MHz:-16dB MIN
60～80MHz:-10dB MIN
5.Crosstalk:
0.1～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
