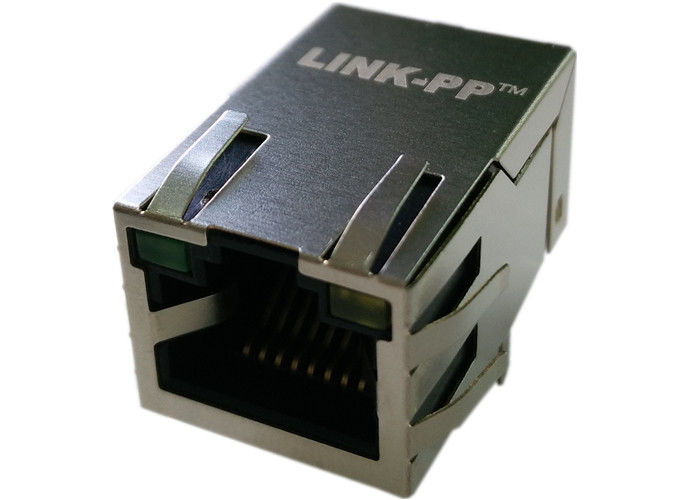

LPJ1014AGNL Magnetic R-j45 , 8P8C , Shield Right Angle W/LED Tab-up

Name: LPJ1014AGNL Magnetic R-j45 , 8P8C , Shield Right Angle W/LED Tab-up
Brand: LINK-PP
SKU: LPJ1014AGNL
Rating: 4.5 (107 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ1014AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Part No:	LPJ1014AGNL	Specification:	LPJ1014AGNL
Ethernet:	1x10/100Mbps	Indicator:	LED Optional
Mounting:	R/A Shield	Samples:	Available Free

Part No:	LPJ1014AGNL
Specification:	LPJ1014AGNL
Ethernet:	1x10/100Mbps
Indicator:	LED Optional
Mounting:	R/A Shield
Samples:	Available Free

LPJ1014AGNL Magnetic R-j45 , 8P8C , Shield Right Angle W/LED Tab-up

1x 10/100 Mbps MagJack-Rj45 Switching Ports
LPJ1014AGNL / LPJ6014AGNL
IEEE 802.3 10/100BASE-T
Rj45 Right Angle PCB Connector
LPJ1014AGNL : 0℃～70℃
LPJ6014AGNL : -40℃～85℃
LPJ1014AGNL.pdf

Electrical Specifications @ 25℃
1.Turns Ratio(%%P2%):
TX=1CT:1CT RX=1CT:1CT
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18 30～60MHz:-16
60～80MHz:-12 80～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.Common Mode Rejection(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Isolation Voltage: 1500Vrms
8.Operating Temperature Range: 0℃～70℃.
