Model Number: LP5009NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP5009NL |
P/N: |
LP5009NL |
Ethernet: |
2 X 10/100Mbps Power |
Measure: |
13.16x18.59x6.12mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
LP5009NL |
P/N: |
LP5009NL |
Ethernet: |
2 X 10/100Mbps Power |
Measure: |
13.16x18.59x6.12mm |
Mounting: |
SMD |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
1. Coil Number: Autotransformer 12 Coils
2. Isolation Voltage:1500Vrms
3. SMD Magnetics Dual Port Module

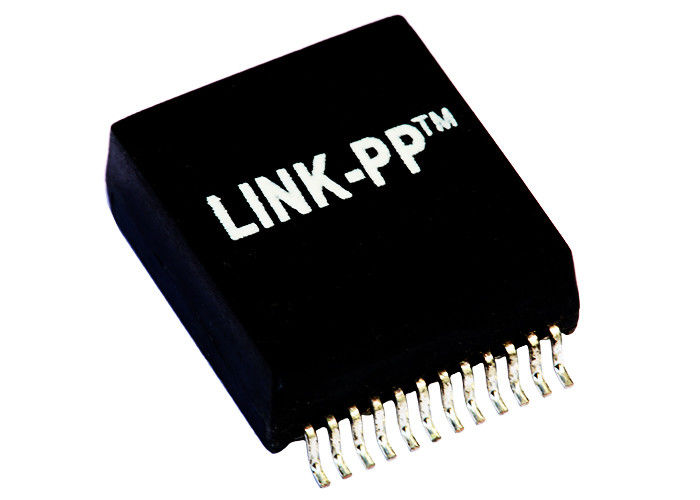

4. 2x10/100Base-Tx POE Transformer
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
LP5008NLE
LP5009ANL
LP5009NL
LP5009NLE
