Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

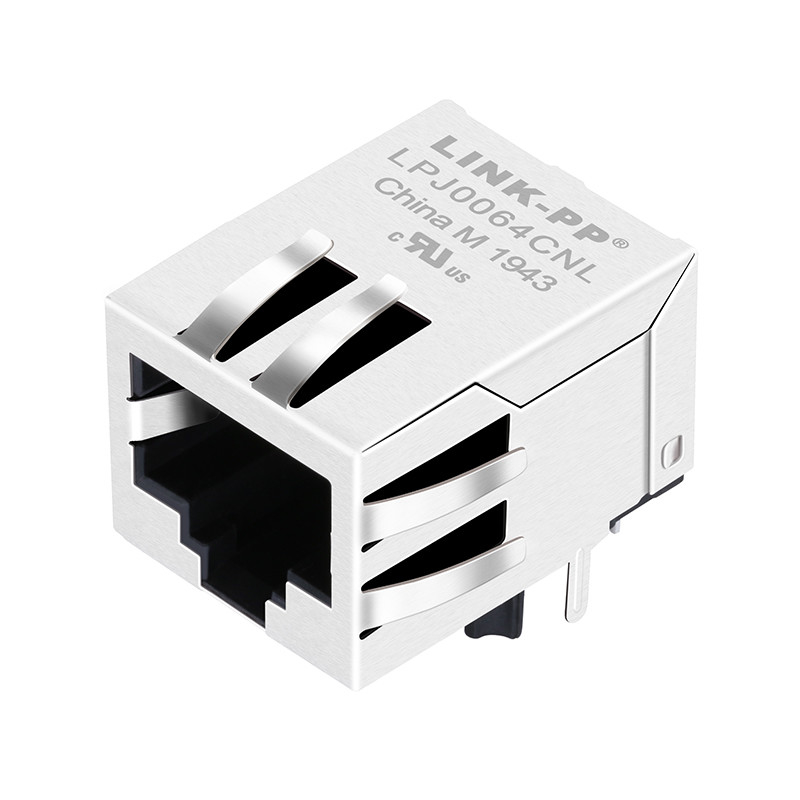

Model Number: 6605424-1(LPJ0064CNL)
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Series: |
6605424-1 TE Connectivity AMP Connectors |
Applications: |
10/100 Base-T, AutoMDIX |
Shielding: |
Shielded |
Mounting Style: |
Through Hole |
LED Indicator: |
Without LED |
Mounting Angle: |
Right Angle |
Tab Direction: |
Tab Down |
Flammability Rating: |
UL 94 V-0 |
Operating Temperature Range: |
0°C To + 70°C |
Series: |
6605424-1 TE Connectivity AMP Connectors |
Applications: |
10/100 Base-T, AutoMDIX |
Shielding: |
Shielded |
Mounting Style: |
Through Hole |
LED Indicator: |
Without LED |
Mounting Angle: |
Right Angle |
Tab Direction: |
Tab Down |
Flammability Rating: |
UL 94 V-0 |
Operating Temperature Range: |
0°C To + 70°C |
■ PCB space savings
■ Improved reliability and EMI performance over discrete magnetics
■ Micro-welding of mag wire to PCB versus soldering
■ Meets or exceeds FCC Part 68, IEEE 802.3, and ANSI X3.263 requirements
■ Supports all appropriate and available PHY Chips and applications
■ Extended Temp -40°C to +85°C available
■ Numerous circuit options available
■ Modular Jacks with Integrated Magnetics
| Electrical Specification | Value |
|---|---|
| Turn Ratio |
TX=1CT:1CT RX=1CT:1CT |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss |
-20dB MIN @ 5-10MHz -16dB MIN @ 10-30MHz -12dB MIN @ 30-60MHz -10dB MIN @ 60-80MHz |
| Cross talk |
-40dB MIN @ 1-30MHz -35dB MIN @ 30-60MHz -30dB MIN @ 60-100MHz |
| Common Mode Rejection |
-30dB MIN @ 1-50MHz -20dB MIN @ 50-150MHz |
| Hipot | 1500Vrms |
| OCL | 350uH MIN @ 100KHz, 100mV, 8mA DC Bias |
| Operating Temperature | 0°C TO 70°C |
1. Designed to support applications, such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4. Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
5. UL Certification: File Number E484635
