HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules

China HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules supplier
HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules supplier HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules supplier

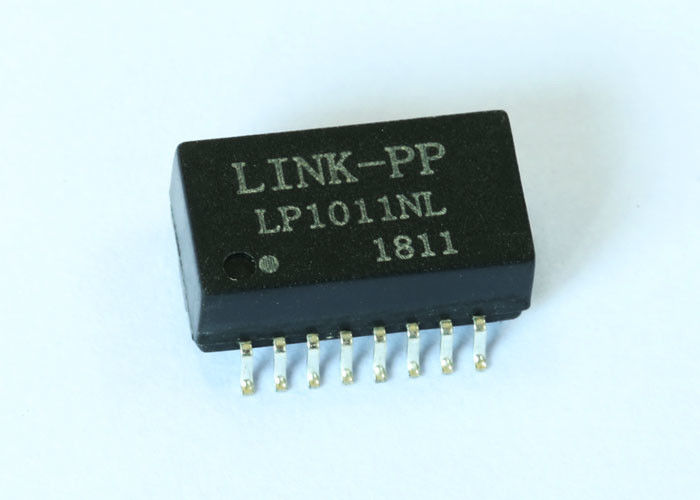

Large Image :  HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HN16614CG

Payment & Shipping Terms:

Minimum Order Quantity: 500/1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: HN16614CG P/N: LP1011NL
Measure: 12.70 Mmx 9.30 Mmx 6.20 Mm Mounting: SMD
Ethernet: 1x10/100Base-Tx Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

HN16614CG | LP1011NL 10/100 Base-T Single Port Transformer For Modules
  • PULSE TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • Coil Structure: Toroidal
  • 10/100 Base-T Transformer Modules
  • LP1011NL Equivalent Specifications
  • Pulse HN16614CG Cross PN LP1011NL

 HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules

SPECIFICATIONS



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type LINK-PP made In China
Application GENERAL PURPOSE
Isolation Voltage 1500.0 V
Manufacturer Series HN16614CG Equivalent
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1
Height 6.20 mm
Length 12.70 mm
Width 9.30 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO



HN16614CG | LP1011NL 10/100 Base-T Single Port Transformer For Modules
