7490140112 Lan Isolation Transformer10/100BT 6KV Hipot 7200 Vrms / MIN

China 7490140112 Lan Isolation Transformer10/100BT 6KV Hipot 7200 Vrms / MIN supplier
7490140112 Lan Isolation Transformer10/100BT 6KV Hipot 7200 Vrms / MIN supplier 7490140112 Lan Isolation Transformer10/100BT 6KV Hipot 7200 Vrms / MIN supplier

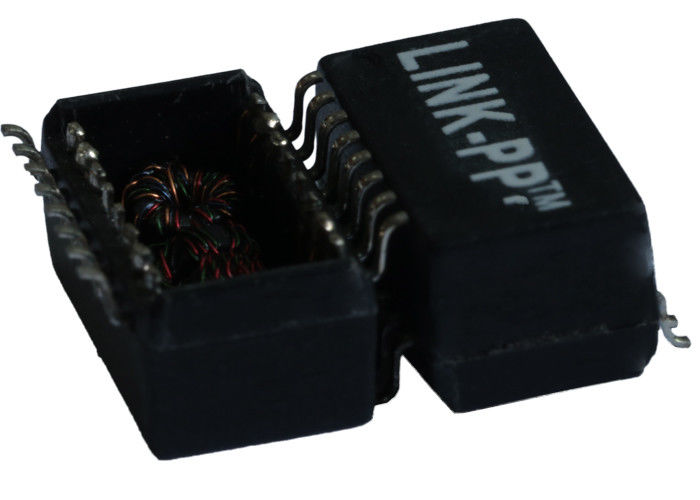

Large Image :  7490140112 Lan Isolation Transformer10/100BT 6KV Hipot 7200 Vrms / MIN

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490140112

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 7490140112 Inductance: 350µH
Turns Ratio: 1 : 1 Mounting Type: Surface Mount
Dimension: 24.55mm L X 17.00mm W X 10.85mm H Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

7490140112 TRANSFORMER, Lan High-Voltage, 10/100BT 6KV IEEE 802.3u



Electrical Specifications @25℃
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 7200Vrms MIN
8.Operating Temperature: -40℃~+85℃.



7490140112 TRANSFORMER, Lan High-Voltage, 10/100BT 6KV IEEE 802.3u
Part number 7490140112
Speed 100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMT
Temperature -40 TO +85
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (mm) 10.85
Package Length (mm) 24.55
Package Width (mm) 17.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
