HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+

China HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+ supplier
HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+ supplier HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+ supplier

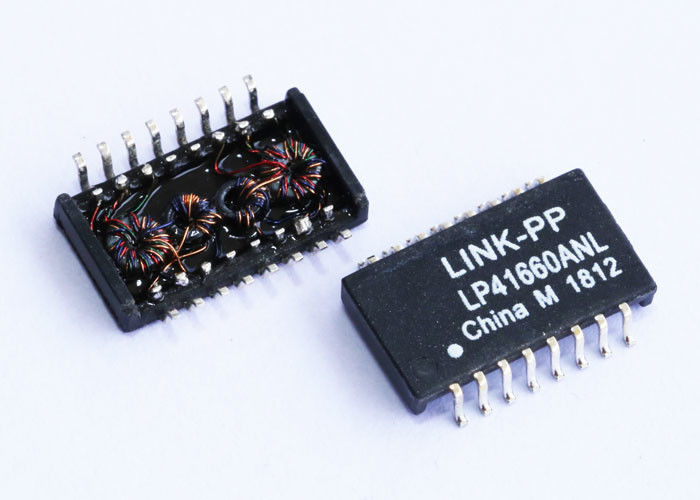

Large Image :  HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HA-212

Payment & Shipping Terms:

Minimum Order Quantity: 500/1500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Part Number: HA-212 Cross PN: LP41660ANL
Application: LAN ETHERNET (POE+) Original Munafactuer: LINK - PP
Cores Per Port: 4 Speed: 10 / 100 Base-t

HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+



Quick Details :



1. Single Port Lan Transformer

2. ColiStructure: Toroidal

3. 10 / 100base-t transformer

4. SMD , 16 pins

5. POE+ Transformer


Description :



LINK-PP Part Number HA-212
Designing Model LP41660ANL
Application-Lan ETHERNET( PoE+ )
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
PCB Mount Angle SMT
Package Height (mm) 3.60
Package Length (mm) 12.80
Package Width (mm) 6.90
Speed 10/100 BASE-T
Temperature -40 TO +85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

HA-212 Insulation Lan Transformer For Ethernet Interface LP41660ANL With POE+

Applications :

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage :

16 years production experience,

2600 staff,

100% test

Flexible delivery time
