Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL, Reach, RoHs, ISO19001, ISO14001
Model Number: HB5005HLT, HXB5007HLT, HB5010HLT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.08-$2.12
Packaging Details: Tape and Reel
Delivery Time: 2-3 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Mounting: |
SMT |
Length: |
15.6 Mm |
Width: |
9.5 Mm |
Height: |
2.3 Mm |
Data Rate: |
1000BASE-T |
Number Of Ports: |
Single |
Turns Ratio: |
1CT:1CT |
Isolation Voltage: |
1500VAC |
Mounting: |
SMT |
Length: |
15.6 Mm |
Width: |
9.5 Mm |
Height: |
2.3 Mm |
Data Rate: |
1000BASE-T |
Number Of Ports: |
Single |
Turns Ratio: |
1CT:1CT |
Isolation Voltage: |
1500VAC |

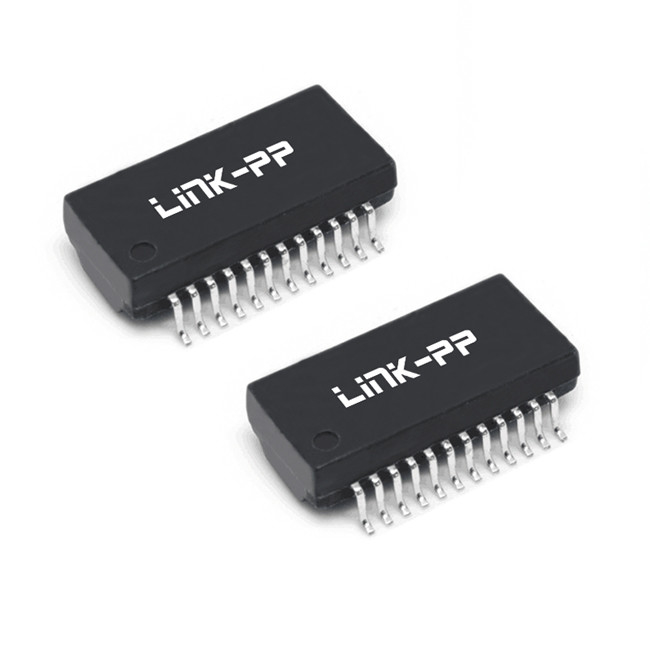

| Items/Part Number | HB5011HLT | HXB5011HLT |
|---|---|---|
| Turns Ratio | 1CT:1CT | 1CT:1CT |
| Media side inductance | 350uH MIN @100KHz, 0.1V | 350uH MIN @100KHz, 0.1V |
| Insertion Loss | -1.0dB MAX @ 1-100MHz | -1.0dB MAX @ 1-100MHz |
| Return Loss |
-16dB MIN @ 1-40MHz -(10-20 log10(f/80))dB MIN @ 40<f≤100MHz |
-16dB MIN @ 1-40MHz -(10-20 log10(f/80))dB MIN @ 40<f≤100MHz |
| PoE (Current Per Pair mA) | - | - |
| Operating Temperature | 0-70°C | -40°C - +85°C |
| Isolation (Pri: Sec) | 1500Vrms | 1500Vrms |
| Note | PCMCIA | PCMCIA |
1. Storage Temperature:
HB5011HLT = -20°C to +125°C
HXB5011HLT = -50°C to +125°C
2. Moisture Sensitive Level = 1
Maximum Peak Solder Temperature = 245°C
3. All parts come in 13” (330mm) Diameter Tape and reel
4. Materials:
Header: Black Thermoset Plastic - Material flammability rating UL 94V-0
Lead Frame: Cooper Alloy
Underplate / Overplate: Tin electro-deposited over Nickel
Finish: Matte finish Tin solder
Packaging Details:
1. Material: Black Antl-Stalic polystyrene.
2. 10 sprocket hole pith cumulative tolerance ±0.20mm
3. A11 dimensions meet EIA-481-E requirement.
4. Thickness:0.3±0.05mm
5. Component load per 13' reel: 1200pcs.
Carton Package
1 REEL = 1200PCS
1 INNER BOX = 2 REELS = 2400PCS
1 OUTER CARTON = 5 INNER BOXES = 12000PCS
