Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ROHS,Reach

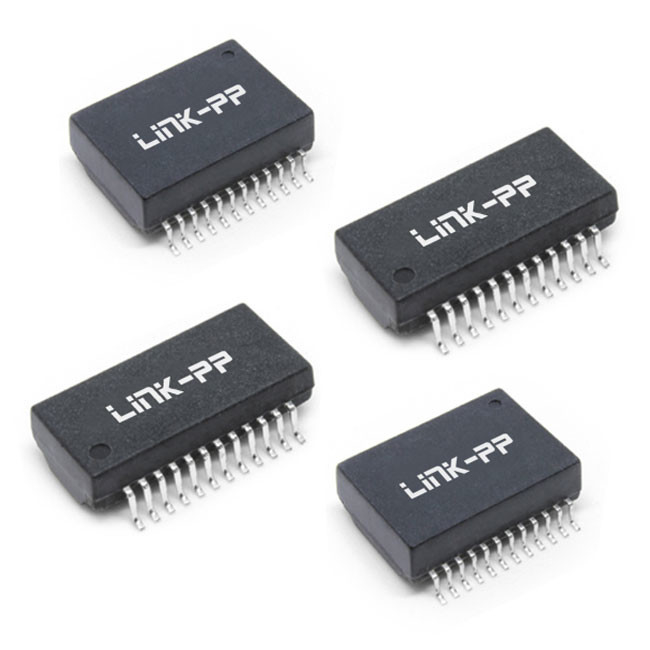

Model Number: HXB4016HLT, HXB4017HLT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.09-$2.3
Packaging Details: Tape and Reel (1 Reel = 350pcs)
Delivery Time: Ships within 1-2 weeks
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6.5million-PCS/Month
Number Of Channels/Ports: |
Single Port |
Mounting Style: |
24 PIN SMD |
PoE Power Rating: |
90W |
Data Rate: |
2.5Gigabit |
Length: |
17.55 Mm |
Width: |
15.90 Mm |
Height: |
6.00 Mm |
Breakdown Voltage: |
1500Vrms |
Winding Configuration: |
2wCMIC X FM |
Operating Temperature: |
-40 To +85°C |
Number Of Channels/Ports: |
Single Port |
Mounting Style: |
24 PIN SMD |
PoE Power Rating: |
90W |
Data Rate: |
2.5Gigabit |
Length: |
17.55 Mm |
Width: |
15.90 Mm |
Height: |
6.00 Mm |
Breakdown Voltage: |
1500Vrms |
Winding Configuration: |
2wCMIC X FM |
Operating Temperature: |
-40 To +85°C |
| Items/Part Number | HXB4016HLT | HXB4017HLT |
|---|---|---|
| Turns Ratio | 1CT:1CT | 1CT:1CT |
| Media side inductance | 180uH MIN @100KHz, 0.1Ve | 180uH MIN @100KHz, 0.1Ve |
| Insertion Loss | -1.0dB MAX @ 1-100MHz -1.5dB MAX @ 125MHz |
-1.0dB MAX @ 1-100MHz -1.5dB MAX @ 125MHz |
| Return Loss |
-16dB MIN @ 1-40MHz -(16-10 log10(f/40))dB MIN @ 40<f≤100MHz |
-16dB MIN @ 1-40MHz -(16-10 log10(f/40))dB MIN @ 40<f≤100MHz |
| PoE (Current Per Pair mA) | 1000 | 1000 |
| Operating Temperature | -40°C - +85°C | -40°C - +85°C |
| Isolation (Pri: Sec) | 1500Vrms | 1500Vrms |
| Note | 90W PoE+ | 90W / Surge DM 3KV |
• Ethernet switches
• Network routers
• Power over Ethernet (PoE) devices
• Industrial automation systems
• Security cameras
• Building management systems
