Model Number: HB5009HLT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs, free sample is available
Price: $0.08-$2.02
Packaging Details: Tape and Reel
Delivery Time: Ships within 15 days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Product Type: |
LAN Discrete Modules |
Power Rating: |
30W |
Moisture Sensitive Level: |
1 |
Minimum Operating Temperature: |
0℃ |
Maximum Operating Temperature: |
+70℃ |
Transformer Length: |
15.1 Mm |
Transformer Width: |
10 Mm |
Transformer Height: |
4 Mm |
Product Type: |
LAN Discrete Modules |
Power Rating: |
30W |
Moisture Sensitive Level: |
1 |
Minimum Operating Temperature: |
0℃ |
Maximum Operating Temperature: |
+70℃ |
Transformer Length: |
15.1 Mm |
Transformer Width: |
10 Mm |
Transformer Height: |
4 Mm |

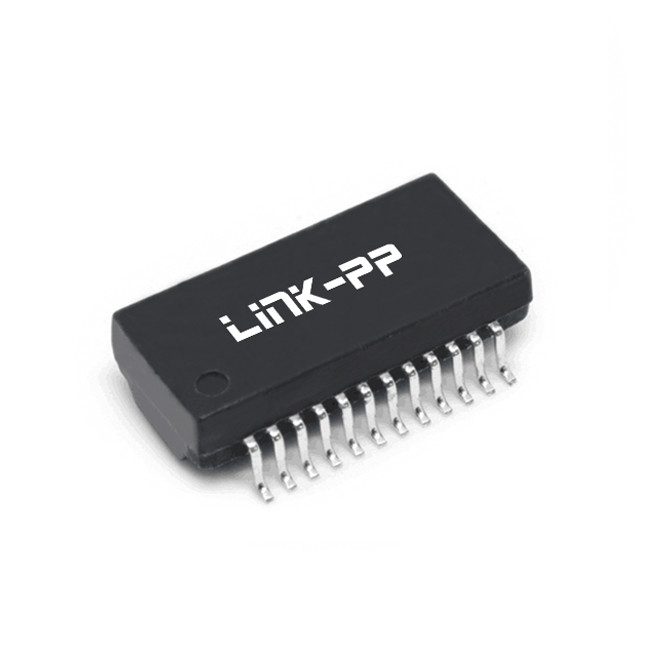

| Part Number | HB5009HLT |
| Product Name | PoE Ethernet Transformer |
| Grade | Commercial grade |
| Mounting | SMT |
| Data Rate | 1000BASE-T |
| Number of Channels/Ports | SINGLE |
| Turns Ratio | 1CT:1CT |
| Isolation Voltage (V) | 1500VAC |
| Media side inductance | 350uH MIN @100KHz, 0.1V |
| Insertion Loss | -1.0dB MAX @ 1-100MHz |
| Return Loss |
-16dB MIN @ 1-40MHz -(10-20 log10(f/80)) @ 40<f≤100MHz, dB MIN |
| PoE | 350mA Current Per Pair |
| Isolation | 1500Vrms Pri: Sec |
| Note | 30W PoE 4 Pair |
| Operating Temperature | 0 to +70°C |
| Storage Temperature | -20 to +125°C |
| Standards | IEEE 802.3ab/af |
| RoHS Status | Fully ROHS Compliant |
| Halogen Free | YES |
| Moisture Sensitive Level | 1 |
| Maximum Peak Solder Temperature | 245°C |
| Header Material | Thermoset Plastic |
| Header Color | Black |
| Material Flammability Rating | UL 94V-0 |
| Lead Frame Material | Cooper Alloy |
| Underplate / Overplate Material | Tin electro-deposited over Nickel |
| Finish | Matte finish Tin solder |
MOD: Usually stands for "Module", indicating that HB5009HLT is a complete module component.
SIN is the abbreviation of "Single", which means this is a single-port Transformer Module.
1GD is the abbreviation of "1 Gigabit", which means that this PoE Transformer is suitable for 1 Gigabit Ethernet.
1:1 Refers to the voltage ratio between the input and output of the transformer being 1:1. The Turns Ratio is 1CT:1CT.
SMD Indicates that this is a surface mount device, suitable for Surface Mount Technology (SMT).
HF: "High Frequency" means that this HB5009HLT Transformer is suitable for high-frequency applications.
T&R: is a form of packaging called "Tape and Reel" in which the components are mounted on a continuous piece of tape.
