81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL

China 81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL supplier
81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL supplier 81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL supplier

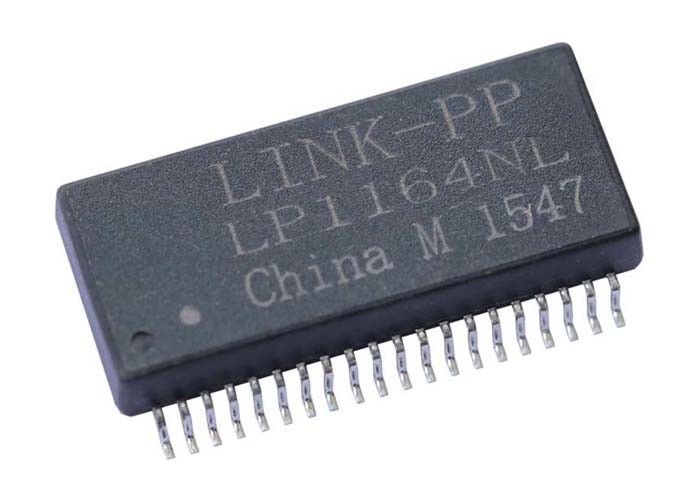

Large Image :  81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 81FB-22FNL

Payment & Shipping Terms:

Minimum Order Quantity: 1500/5000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
PN: LP1164NL Compatible: 81FB-22FNL
Interface: 4x 10/100Base-T Port: Single SMD
Pins: 40 Pins Hipot: 1500V
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet Cross: 81FB-22FNL = LP1164NL

81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL

Quad Port, 10/100 BASE-T Ethernet Power Transformer Price, SMD,Rohs
LINK-PP Part Number LP1164NL
Other Part Number 81FB-22FNL
Speed 10/100BASE-T
Number of Ports QUAD
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO +70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.26
Package Height (mm) 6.6
Package Length (Inches) 1.125
Package Length (mm) 28.58
Package Width (Inches) 0.63
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT




81FB-22FNL Quad Port 10/ 100Base-T Transformer SMT LP1164NL
