Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HST-48039SXCR HST-48029SXCR
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HST-48039SXCR HST-48029SXCR |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HST-48039SXCR HST-48029SXCR |
Ethernet: |
1x 10/100 |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

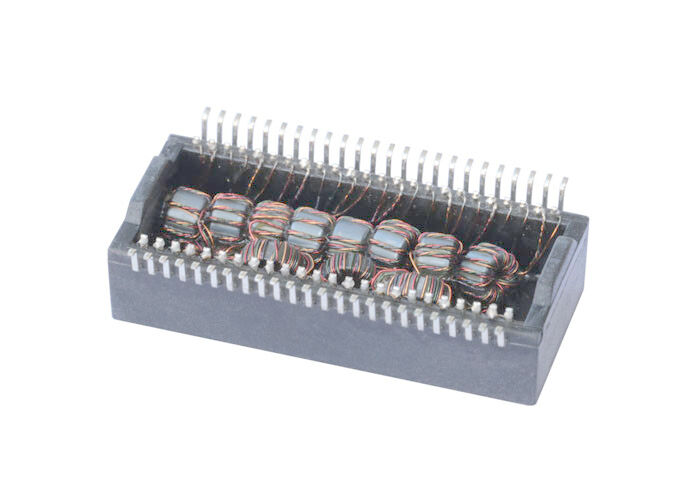

Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
LINK-PP Part Number | - |
Pulse Part Number | HST-48039SXCR HST-48029SXCR |
Speed | 10/100/1000BASE-T |
Number of Ports | SINGLE |
Application - LAN | ETHERNET (PoE) |
Package | SMD |
AutomDX | YES |
Comment | SAME AS NL VERSION |
Configuration RX | T,C,S |
Configuration TX | T,C,S |
Construction | OPEN FRAME |
Cores Per Port | 4 |
Package Height (mm) | 4.95 |
Package Length (mm) | 12.7 |
Package Width (mm) | 7.25 |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
● Compliant with IEEE 802.3 standard for1000Base-T.
● Primary inductance(Lp)350uH min.@100KHz,0.1Vrms,DC 8mA.
● Capacitance between windings (Cww)30pF Max(at 100kHz, 0.1V).
● Leakage Inductance (LL) 0.5uH Max (at 100kHz, 0.1V).DCR 1.2Ω Max.
● DCR Pri 0.9ΩMax Sec 1.2Ω Max.
