Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749023021
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
749023021 |
Cross: |
LP6080NL |
Application: |
Power Over Ethernet Magnetic |
Pins: |
48 Pins |
Port: |
4x 10/100Base-TX , 2x1000Base-T |
Hipot: |
1500V |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
749023021 |
Cross: |
LP6080NL |
Application: |
Power Over Ethernet Magnetic |
Pins: |
48 Pins |
Port: |
4x 10/100Base-TX , 2x1000Base-T |
Hipot: |
1500V |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Specification Description | 749023021 / 000-7393-30R-LF1 Equivalent |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |

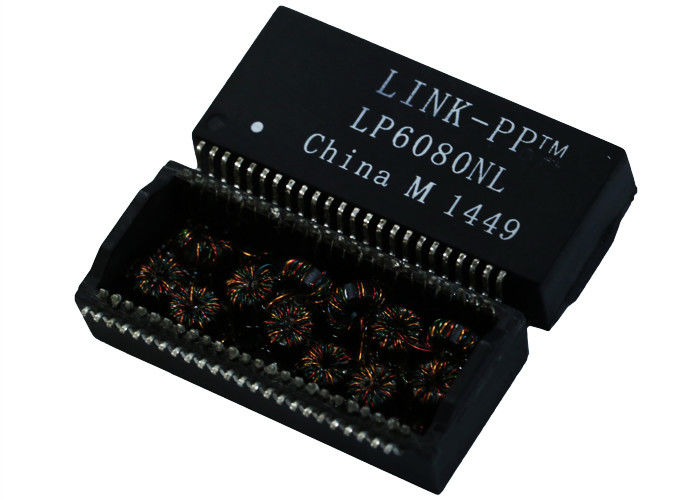

| LINK-PP PN Cross | LP6080NL |
| Status | Update to LP6080NL |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 2x 1000 BASE-T; LAN Power / 4x 10/100 Base-T, Power over Ethernet (PoE) |
| Approvals | UL |
| Isolation Voltage | 1500.0 V |
Electrical Specifications @25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.OCL: 350uH MIN
@100KHz,100mV,8mADC Bias
3.Insertion Loss(dB MAX):
0.1MHz:-1.1 100MHz:-1.0
125MHz:-2.0
4.Return Loss(dB MIN):
30MHz:-18 60MHz:-12
80MHz:-12 100MHz:-10
5.Crosstalk(dB MIN):
30MHz:-43 60MHz:-37
100MHz:-33
6.Hipot(Vrms MIN): 1500
7.POE Application With 350mA-600mA Current Capability
8.Quad 4 Port 10/100 Base-T, Power over Ethernet (PoE)
9.Dual 2 Port 1000Base-T, Power over Ethernet (PoE)
4x 10/100 Base-T, Power over Ethernet (PoE)
Other Compatible PN.
| 749014011 | 749010012 | 7490200136 | 000-7393-30R-LF1 |
| 749014012 | 749010014 | 749050010A | 749020013 |
| 749014013 | 749010040 | 749050010U | 000-7333-30R-LF1 |
