XFGIG8M-CAGY1-4MS Gigabit Ethernet Jack , 10/100/1000 Mbps Rj45 Socket Female

Name: XFGIG8M-CAGY1-4MS Gigabit Ethernet Jack , 10/100/1000 Mbps Rj45 Socket Female
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: XFGIG8M-CAGY1-4MS
Price: 0.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: XFGIG8M-CAGY1-4MS

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj-45 ethernet jack, modular jacks rj45


Specification:	XFGIG8M-CAGY1-4MS	Part No:	LPJG4801ABNL
Munafactuer:	LINK-PP	Application:	1x10/100/1000 Ethernet
Indicator:	Optional LED	Samples:	Available Free

Specification:	XFGIG8M-CAGY1-4MS
Part No:	LPJG4801ABNL
Munafactuer:	LINK-PP
Application:	1x10/100/1000 Ethernet
Indicator:	Optional LED
Samples:	Available Free

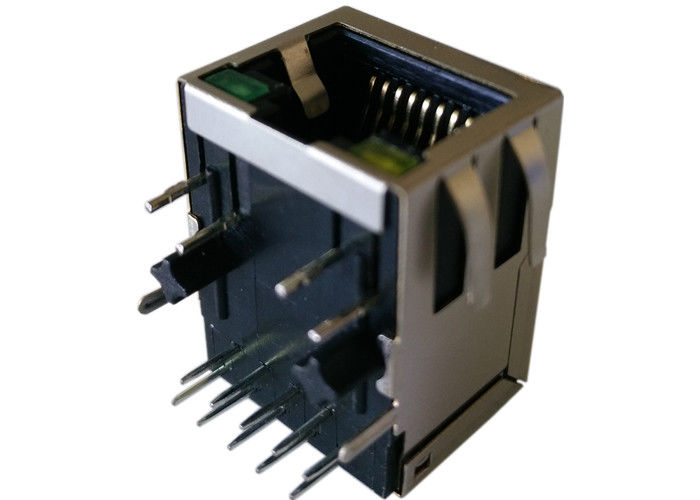

XFGIG8M-CAGY1-4MS Gigabit Ethernet Jack , 10/100/1000 Mbps Rj45 Socket Female

10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications
1X1, INT. MAG., LED, REVERSE LATCH
LPJG4801ABNL Cross XFGIG8M-CAGY1-4MS
LED optional, EMI-finger Optional.

Electrical Specifications @ 25℃
1.Turns Ratio
1CT∶1CT
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18 30～60MHz:-16
60～80MHz:-12 80～100MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.Common Mode Rejection(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Isolation Voltage:1500Vrms
8.Operating Temperature Range: -40℃～+85℃.

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
