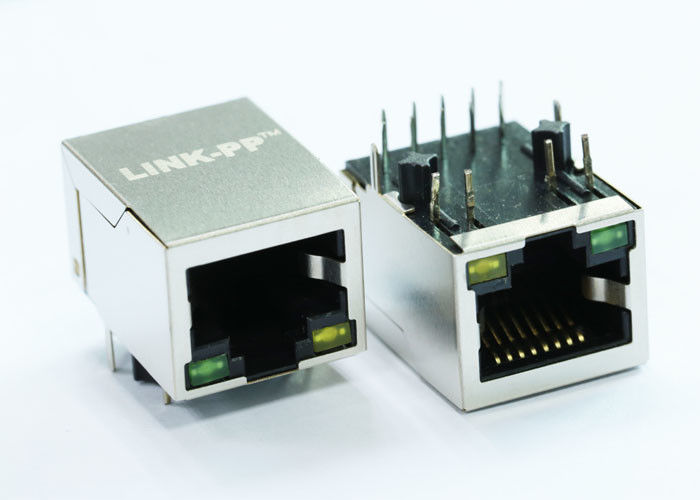

RB1-126BHQ1A Network RJ45 Telephone Jack LPJ0075BHNL Female Connector & PoE

Name: RB1-126BHQ1A Network RJ45 Telephone Jack LPJ0075BHNL Female Connector & PoE
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: RB1-126BHQ1A
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH

Model Number: RB1-126BHQ1A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    poe rj45 pinout, dual rj45 jack


Specifications:	RB1-126BHQ1A	P/N:	LPJ0075BHNL
Ethernet:	10/100Base	Samples:	Free
Termination:	Solder	PCB Mounting Orientation:	Side Entry

Specifications:	RB1-126BHQ1A
P/N:	LPJ0075BHNL
Ethernet:	10/100Base
Samples:	Free
Termination:	Solder
PCB Mounting Orientation:	Side Entry

RB1-126BHQ1A Network RJ45 Telephone Jack LPJ0075BHNL Female Connector & PoE

RB1-126BHQ1A Network RJ45 Telephone Jack LPJ0075BHNL Female Connector & PoE

RJ-45 connector integrated with Filter
Size same as RJ-45 connector to save PCB board space
Reduce EMI radiation, Improve EMI performance
High performance for maximum EMI suppression.
ISO9001,SGS,UL,CE,REACH
Reduce EMI radiation, Improve EMI performance
1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u

LINK-PP Part Number	LPJ0075BHNL
Designing Model	RB1-126BHQ1A
Cores per Port	6
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.4
Package Length (mm)	21.3
Package Width (mm)	15.9
Shield EMI Tabs	WITHOUT
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
