Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL

Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL
Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL

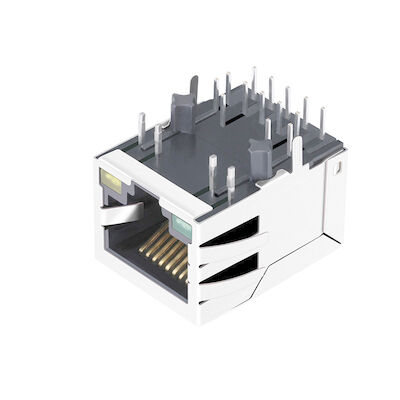

Large Image :  Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJG4926GENL
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional (60pcs/try);960/box
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Detailed Product Description
Bel Spec: LPJG4926GENL Ethernet: Gigabit
Samples: Available RJ45 Connector: 1X1 With POE+
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet LEDs: Green/Yellow
High Light:

poe rj45 pinout

,

dual rj45 jack

Rj45 Gigabit Ethernet Socket IEEE802.3at With POE+ Connector LPJG4926GENL

LINK-PP Part Number LPJG4926GENL
Application-Lan ETHERNET(PoE+)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.30
Package Length (mm) 21.25
Package Width (mm) 15.93
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
