Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE169AENL
Document: LPJE169AENL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
LPJE169AENL |
Delivery Time: |
5-6 Weeks |
Standard: |
IEEE802.3 |
Gold-plating: |
30u |
Family: |
Low Profile RJ45 Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Ports: |
1X1 |
Latch: |
Down |
Performance Category: |
CAT 5 |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
With |
EMl Tabs: |
With |
Metal-Shield: |
Shielded |
Orientation: |
Right Angle(Side Entry) |
Specifications: |
LPJE169AENL |
Delivery Time: |
5-6 Weeks |
Standard: |
IEEE802.3 |
Gold-plating: |
30u |
Family: |
Low Profile RJ45 Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Number Of Ports: |
1X1 |
Latch: |
Down |
Performance Category: |
CAT 5 |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
With |
EMl Tabs: |
With |
Metal-Shield: |
Shielded |
Orientation: |
Right Angle(Side Entry) |

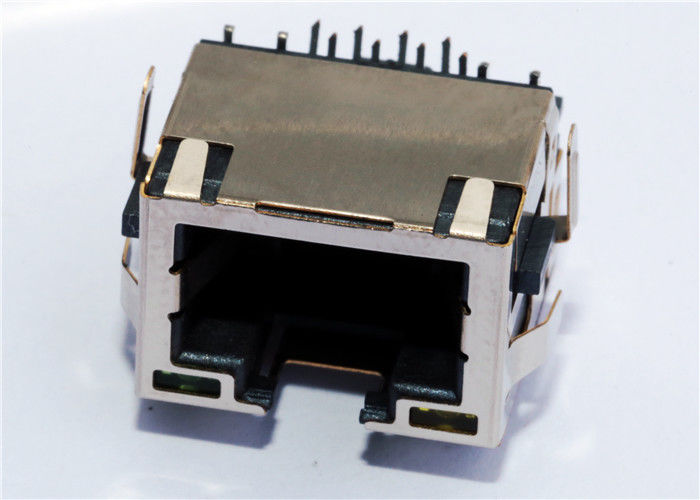

| Shielded 1x1 Port Low-Profile RJ45 Connector with Green/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJE169AENL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 30u" |
| LED Option | Green/Yellow LEDs |
| Latch | TAB DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 11.50 |
| Package Length (mm) | 15.10 |
| Package Width (mm) | 16.14 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Temperature | -40 TO + 85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
