POE 10/100Base-T Magnetics LP1197NL Single Port Power Ethernet Module

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP1197NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

poe magnetics

,

ethernet transformer

Specifications:
LP1197NL
P/N:
LP1197NL
Mounting:
SMD
Measure:
12.7x9.30x6.20mm
Ethernet:
1x 10/100 POE
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP1197NL
P/N:
LP1197NL
Mounting:
SMD
Measure:
12.7x9.30x6.20mm
Ethernet:
1x 10/100 POE
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet

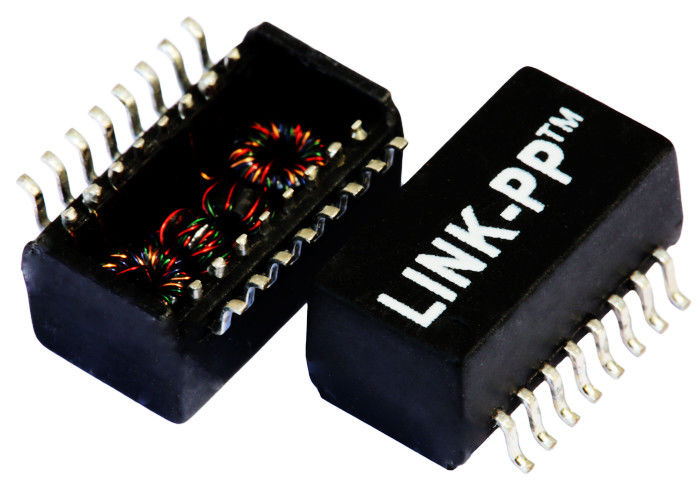

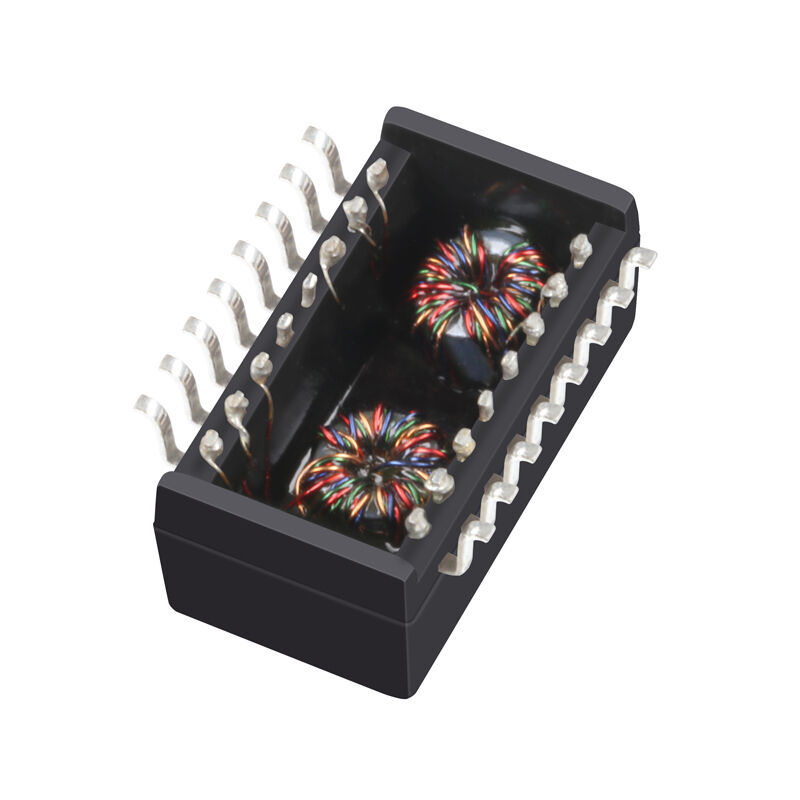

POE 10/100Base-T Magnetics LP1197NL Single Port Power Ethernet Module
POE 10/100Base-T Magnetics LP1197NL Single Port Power Ethernet Module



  1. Single Port Magnetics Transformer Module
  2. 24pins Surface Mounting Isolated Transformer
  3. LINK-PP LP1197NL
  4. IEEE 802.3af
  5. Support 350mA -600mA max Current
  6. Cost Effective



1.Turn Ratio(± 2%): POE 10/100Base-T Magnetics LP1197NL Single Port Power Ethernet Module 0
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
POE 10/100Base-T Magnetics LP1197NL Single Port Power Ethernet Module
